Security evaluation checklist#

Caution

This security checklist is used by the Alan Turing Institute to evaluate compliance with our default controls. Organisations are responsible for making their own decisions about the suitability of any of our default controls and should treat this checklist as an example, not a template to follow.

In this check list we aim to evaluate our deployment against the security configuration that we apply at the Alan Turing Institute. The security checklist currently focuses on checks that can evaluate these security requirements for Tier 2 (or greater) SREs (with some steps noted as specific to a tier):

How to use this checklist#

  • Ensure you have an SHM and attached SRE(s) that you wish to test.

Note

Some parts of the checklist are only relevant when there are multiple SREs attached to the same SHM.

  • Work your way through the actions described in each section, taking care to notice each time you see a 📷 or a ✅ and the word Verify:

Note

  • 📷 Where you see the camera icon, there should be accompanying screenshot(s) of evidence for this item in the checklist (you may wish to save your own equivalent screenshots as evidence)

  • ✅ This indicates a checklist item for which a screenshot is either not appropriate or difficult

Prerequisites#

  • Deployed SHM that you are testing

  • Deployed SRE A that is attached to the SHM

  • Deployed SRE B that is attached to the same SHM

  • VPN access to the SHM that you are testing

Important

  • If you haven’t already, you’ll need download a VPN certificate and configure VPN access for the SHM

  • Make sure you can use Remote Desktop to log in to the domain controller (DC1).

The following users will be needed for this checklist

  • SRE standard user who is a member of the SRE A research users group

    • Create a new user without MFA

      • Following the SRE deployment instructions for setting up a non privileged user account, create an account but do not add them to any SG <SRE ID> Research Users group.

      • Visit https://aka.ms/sspr in an incognito browser

      • Attempt to login and reset password, but do not complete MFA (see these steps)

  • System Manager who has Contributor permissions (or higher) on the underlying Azure subscription

  • Data provider who has no accounts on the Safe Haven system

1. Multifactor authentication and password strength#

Turing configuration setting:#

  • Users must set up MFA before accessing the secure analysis environment.

  • Users cannot access the environment without MFA.

  • Users are required/advised to create passwords of a certain strength.

Implication:#

  • Users are required to authenticate with Multi-factor Authentication (MFA) in order to access the secure analysis environment.

  • Passwords are strong

Verify by:#

Check: Non-group user cannot access the apps#

Attempt to login to the remote desktop web client as the SRE standard user

Attention

📷 Verify that:

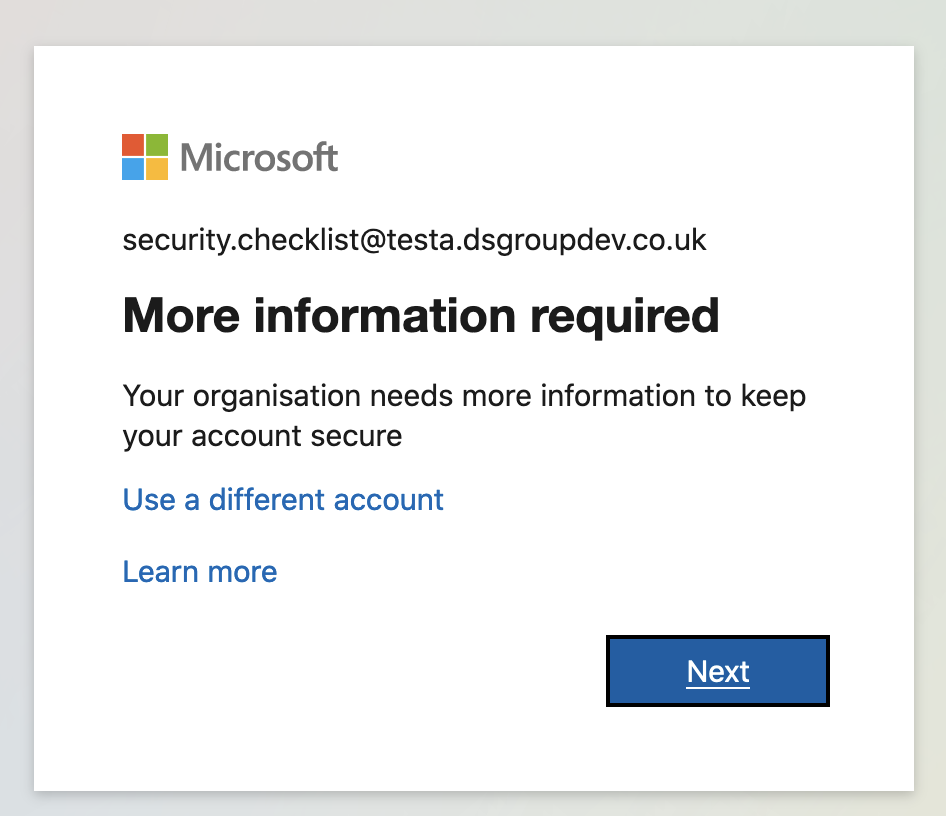

user is prompted to setup MFA Guacamole MFA setup prompt

Check: Membership of the correct group is insufficient to give access#

Add the SRE standard user to the relevant Research Users group under Safe Haven Security Groups on the domain controller.

Attention

📷 Verify that:

user is prompted to setup MFA Guacamole MFA setup prompt

User can self-register for MFA#

Check that the SRE standard user is able to successfully set up MFA

Attention

✅ Verify that: user is guided to set up MFA

Attention

📷 Verify that:

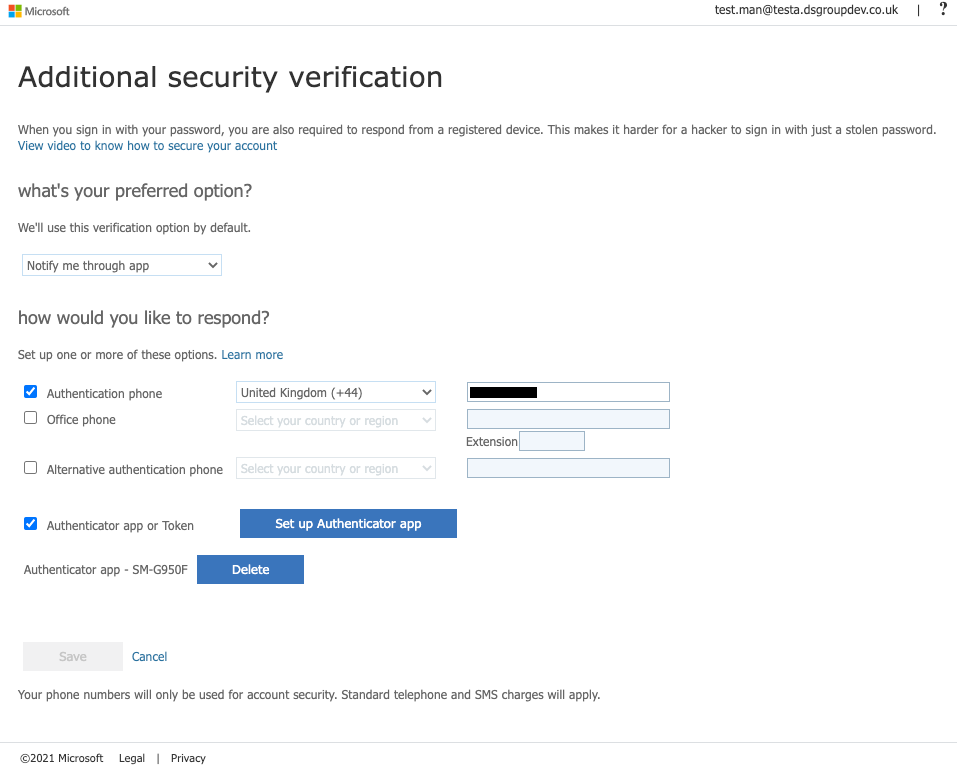

MFA setup is successful AAD additional security verification

User can login after setting up MFA#

Check that the SRE standard user can authenticate with MFA.

  • Login to the remote desktop web client as the SRE standard user.

Attention

📷 Verify that:

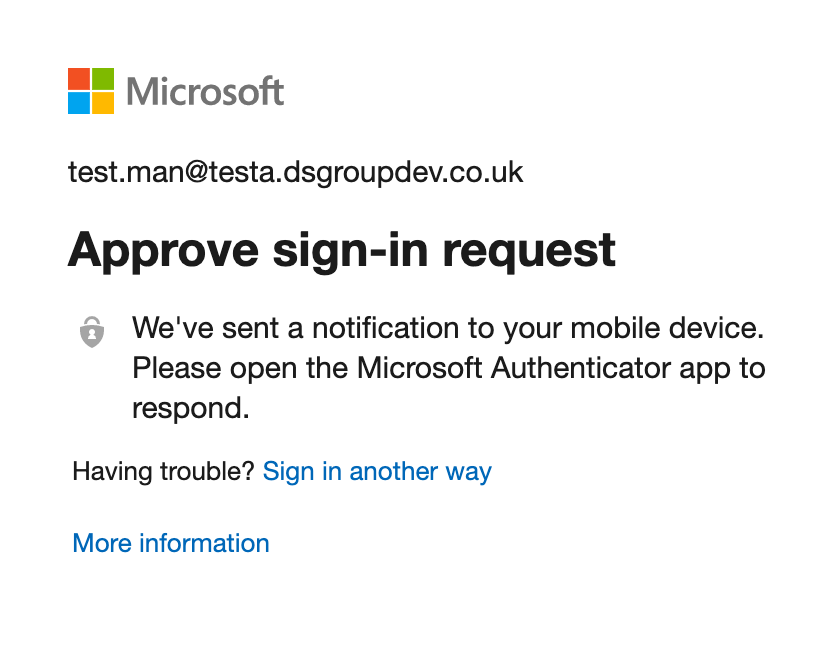

you are prompted for MFA and can respond AAD MFA approve sign-in request

Authenticated user can access the Secure Research Desktop (SRD) desktop#

Check that the SRE standard user can access the Secure Research Desktop (SRD) desktop.

  • Login to the remote desktop web client as the SRE standard user.

Attention

📷 Verify that:

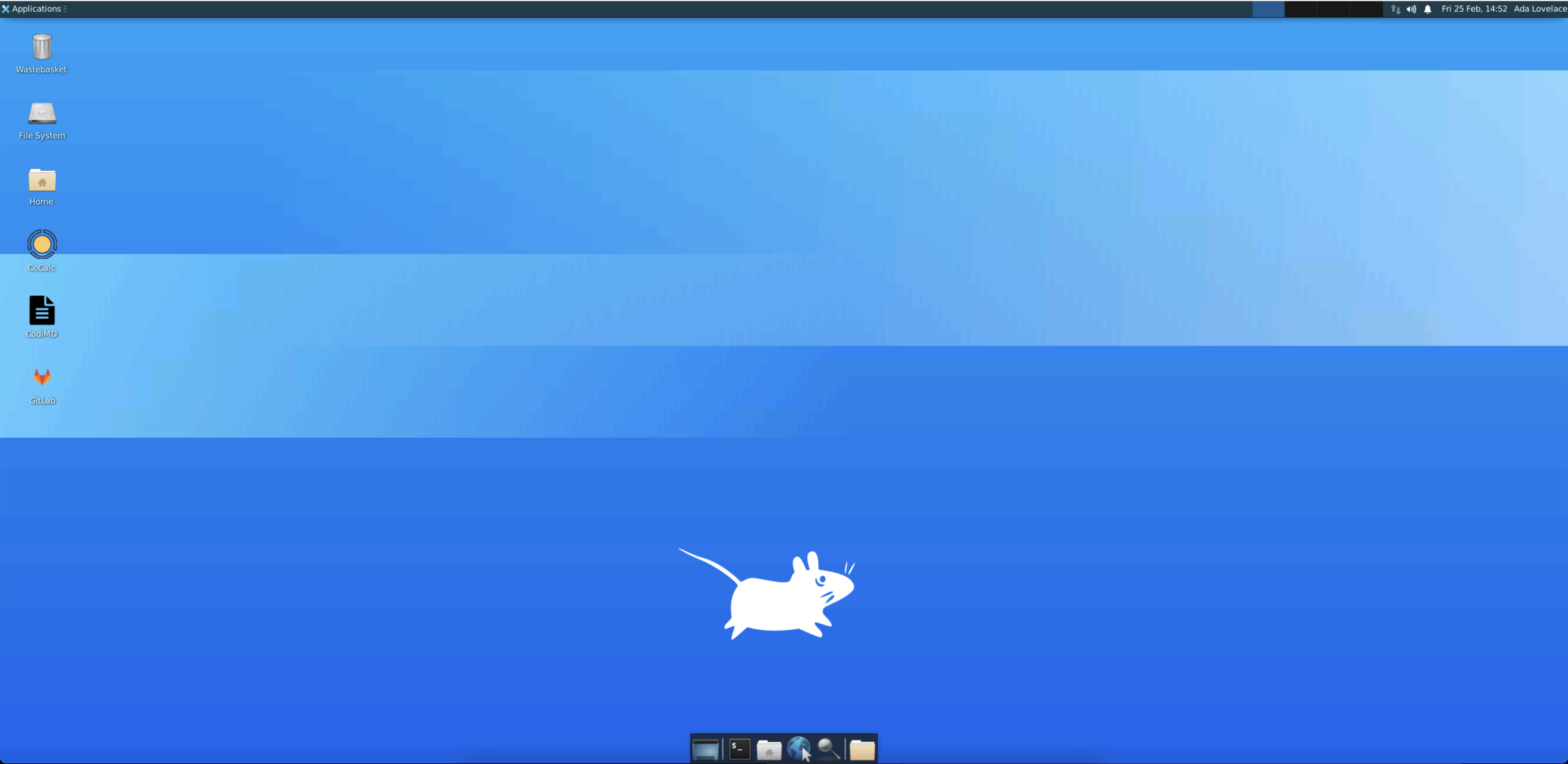

you can connect to Desktop: Ubuntu0 SRD desktop

2. Isolated Network#

Turing configuration setting:#

  • Researchers cannot access any part of the network from outside the network.

  • VMs in the SHM are only accessible by System Managers using the management VPN.

  • Whilst in the network, one cannot use the internet to connect outside the network.

  • SREs in the same SHM are isolated from one another.

Implication:#

  • The Data Safe Haven network is isolated from external connections (both Tier 2 and Tier 3)

Verify by:#

Connect to SHM VMs if and only if connected to the SHM VPN:#

  • Connect to the SHM VPN

  • Attempt to connect to the SHM DC

Attention

✅ Verify that: connection works

  • Disconnect from the SHM VPN

  • Attempt to connect to the SHM DC

Attention

✅ Verify that: connection fails

Fail to connect to the internet from within an SRD on the SRE network#

  • Login as a user to an SRD from within the SRE by using the web client.

  • Choose your favourite three websites and attempt to access the internet using a browser

Attention

📷 Verify that:

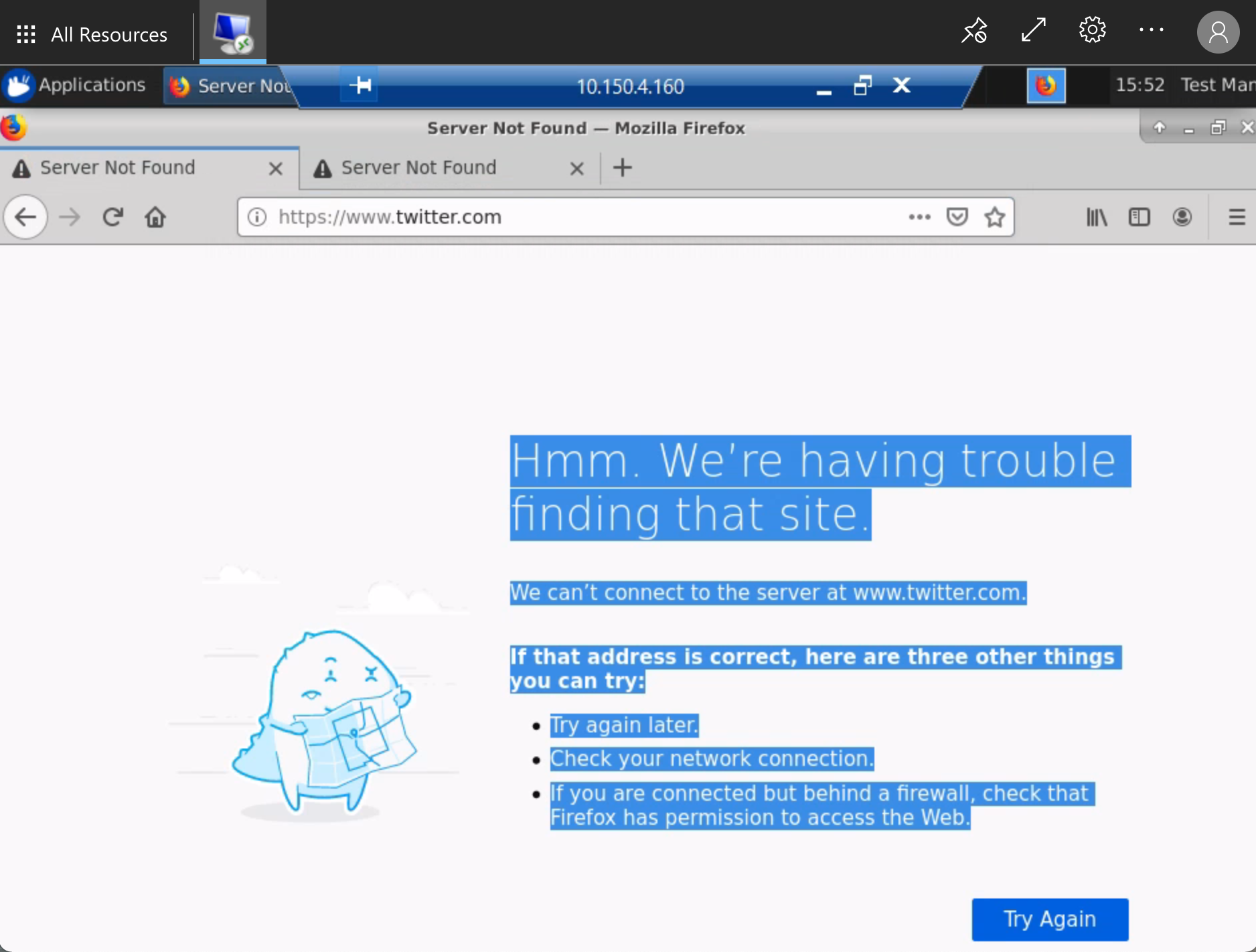

browsing to the website fails SRD no internet

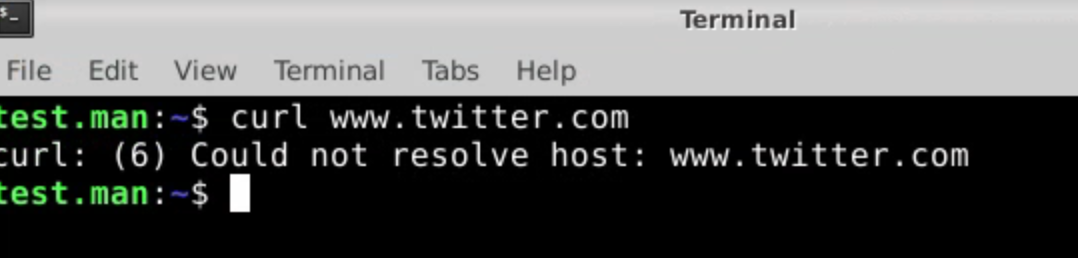

you cannot access the website using curl SRD no curl

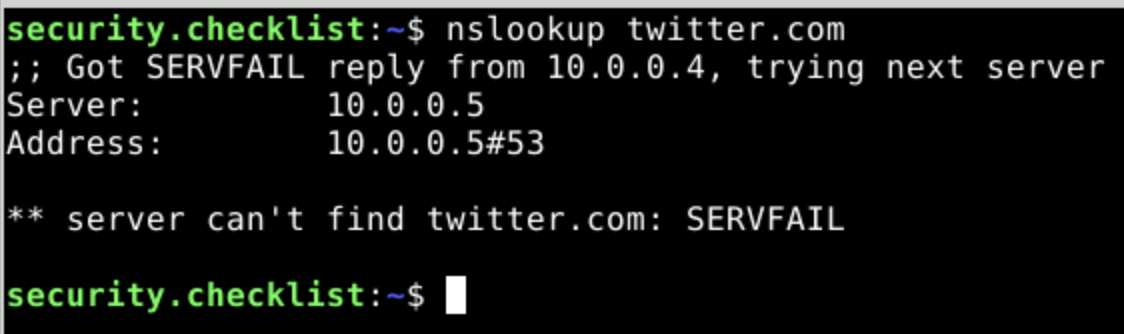

you cannot look up the IP address for the website using nslookup SRD no curl

SREs are isolated from one another#

Check that users cannot connect from one SRE to another one in the same SHM, even if they have access to both SREs

  • Ensure that the SRE standard user is a member of the research users group for both SRE A and SRE B

  • Log in to an SRD in SRE A as the SRE standard user using the web client.

  • Open the Terminal app from the dock at the bottom of the screen and enter ssh -v -o ConnectTimeout=10 <IP address> where the IP address is one for an SRD in SRE B (you can find this in the Azure portal)

Attention

📷 Verify that:

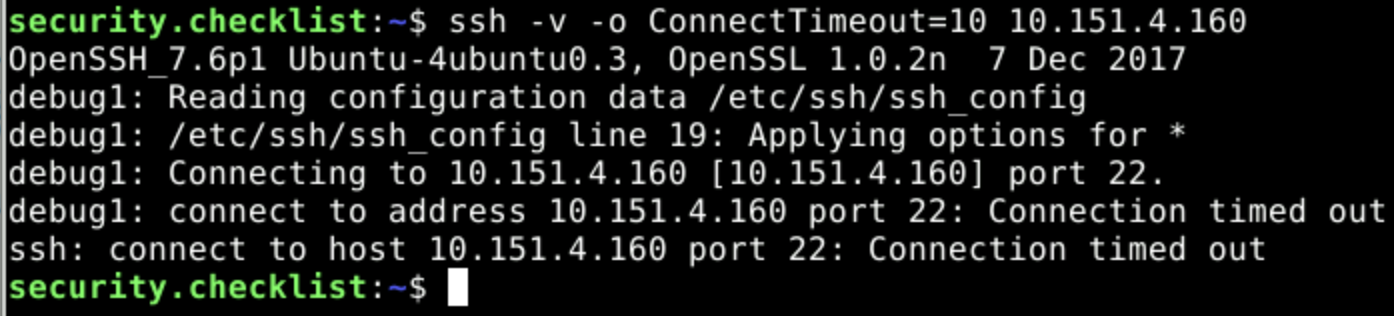

SSH connection fails SSH connection failure

  • Check that users cannot copy files from one SRE to another one in the same SHM

    • Log in to an SRD in SRE A as the SRE standard user using the web client.

    • In a separate browser window, do the same for SRE B.

    • Attempt to copy and paste a file from one SRE desktop to another

Attention

✅ Verify that: copy-and-paste is not possible

  • Check that the network rules are set appropriately to block outgoing traffic

  • Visit the portal and find NSG_SHM_<SHM ID>_SRE_<SRE ID>_COMPUTE, then click on Settings > Outbound security rules

Attention

📷 Verify that:

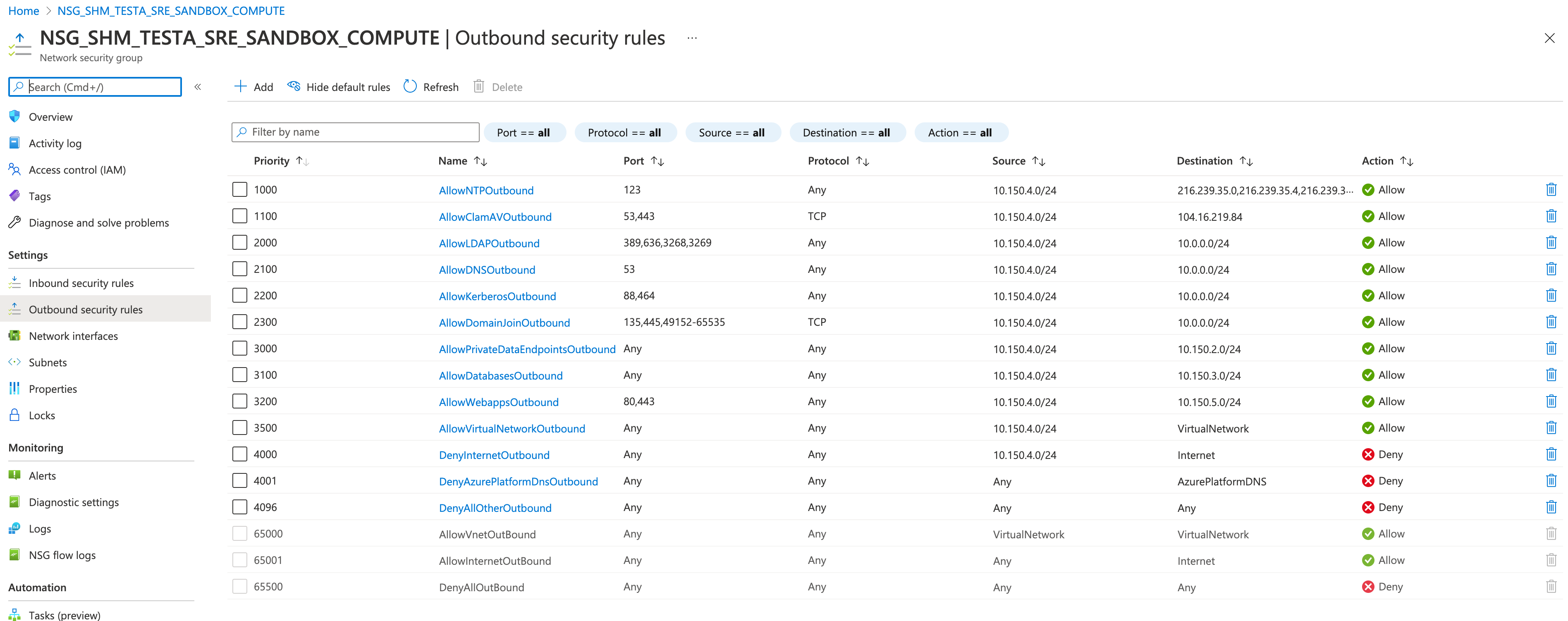

there exists an NSG rule with Destination Internet and Action Deny and that no higher priority rule allows connection to the internet. NSG outbound access

3. User devices#

Turing configuration setting:#

  • Managed devices must be provided by an approved organisation and the user must not have administrator access to them.

  • Network rules for higher tier environments permit access only from IP ranges corresponding to Restricted networks that only permit managed devices to connect.

Implication:#

  • At Tier 3, only managed devices can connect to the Data Safe Haven environment.

  • At Tier 2, any device can connect to the Data Safe Haven environment (with VPN connection and correct credentials).

Verify by:#

User devices (Tier 2)#

  • Connect to the environment using an allow-listed IP address and credentials

Attention

✅ Verify that: connection succeeds

  • Connect to the environment from an IP address that is not allow-listed but with correct credentials.

Attention

✅ Verify that: connection fails

User devices (Tier 3)#

All managed devices should be provided by a known IT team at an approved organisation.

Attention

✅ Verify that: the IT team of the approved organisation take responsibility for managing the device.

Attention

✅ Verify that: the user does not have administrator permissions on the device.

Attention

✅ Verify that: allow-listed IP addresses are exclusive to managed devices.

  • Connect to the environment using an allow-listed IP address and credentials

Attention

✅ Verify that: connection succeeds

  • Connect to the environment from an IP address that is not allow-listed but with correct credentials.

Attention

✅ Verify that: connection fails

Network rules (Tier 2 and above):#

There are network rules permitting access to the remote desktop gateway from allow-listed IP addresses only

  • Navigate to the NSG for this SRE in the portal:

    • 🍐 NSG_SHM_<SHM ID>_SRE_<SRE ID>_GUACAMOLE

Attention

📷 Verify that:

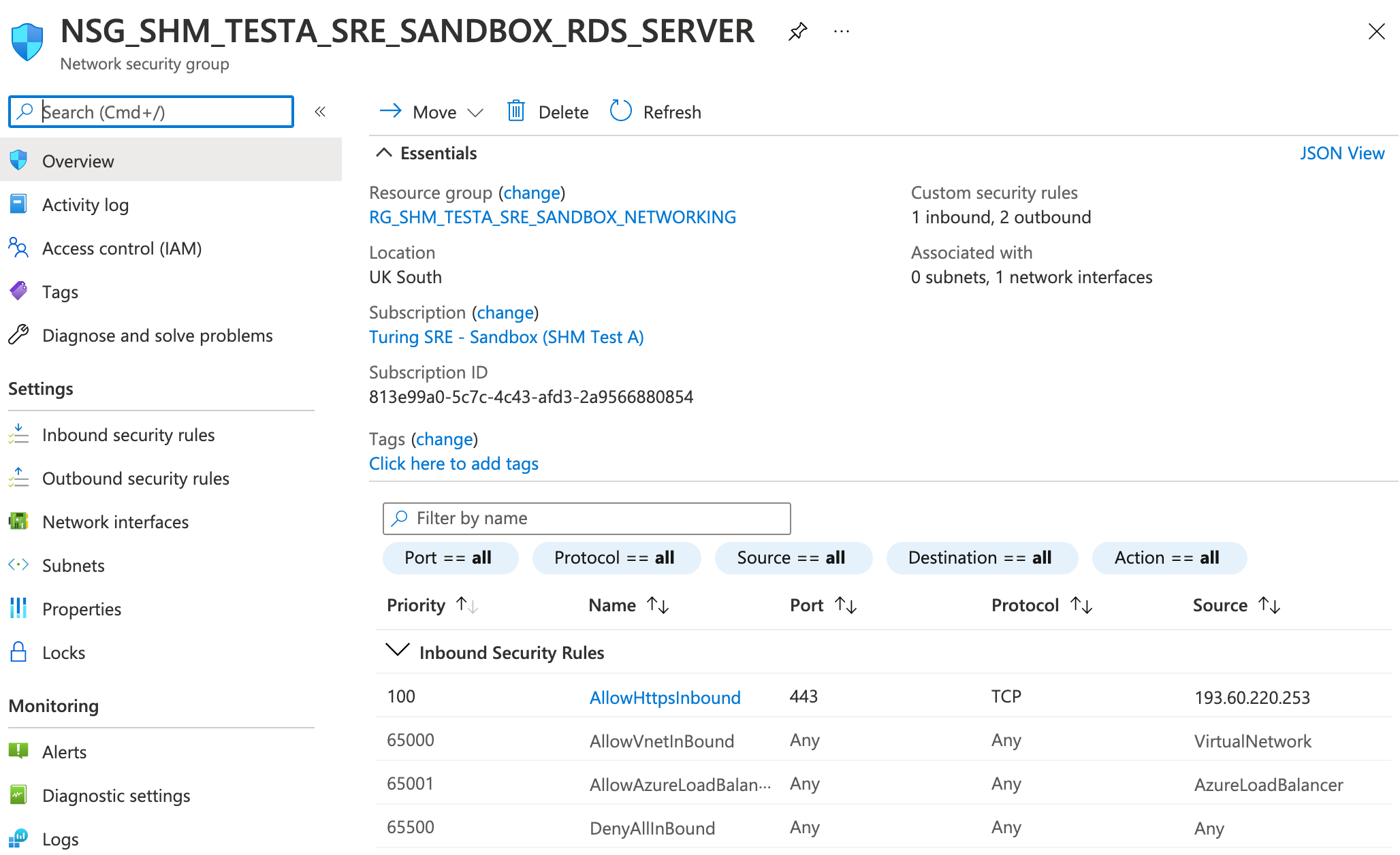

the NSG has network rules allowing inbound access from allow-listed IP addresses only NSG inbound access

Attention

✅ Verify that: all other NSGs (apart from NSG_SHM*<SHM ID>_SRE_<SRE ID>\_DEPLOYMENT) have an inbound Deny All rule and no higher priority rule allowing inbound connections from outside the Virtual Network (apart from the Admin VPN in some cases).

4. Physical security#

Turing configuration setting:#

  • Medium security research spaces control the possibility of unauthorised viewing.

  • Card access or other means of restricting entry to only known researchers (such as the signing in of guests on a known list) is required.

  • Screen adaptations or desk partitions can be adopted in open-plan spaces if there is a high risk of “visual eavesdropping”.

  • Firewall rules for the Environments can permit access only from Restricted network IP ranges corresponding to these research spaces.

Implication:#

  • At Tier 3 access is limited to certain secure physical spaces

Verify by:#

Physical security (Tier 3)#

Connection from outside the secure physical space is not possible.

  • Attempt to connect to the Tier 3 SRE web client from home using a managed device and the correct VPN connection and credentials

Attention

✅ Verify that: connection fails

Connection from within the secure physical space is possible.

  • Attempt to connect from research office using a managed device and the correct VPN connection and credentials

Attention

✅ Verify that: connection succeeds

Attention

✅ Verify that: check the network IP ranges corresponding to the research spaces and compare against the IPs accepted by the firewall.

Attention

✅ Verify that: confirm in person that physical measures such as screen adaptions or desk partitions are present if risk of visual eavesdropping is high.

5. Remote connections#

Turing configuration setting:#

  • User can connect via remote desktop but cannot connect through other means such as SSH

Implication:#

  • Connections can only be made via remote desktop (Tier 2 and above)

Verify by:#

SSH connection is not possible#

  • Attempt to login as the SRE standard user via SSH with ssh <user.name>@<SRE ID>.<safe haven domain> (e.g. ssh -v -o ConnectTimeout=10 ada.lovelace@sandbox.turingsafehaven.ac.uk)

Attention

📷 Verify that:

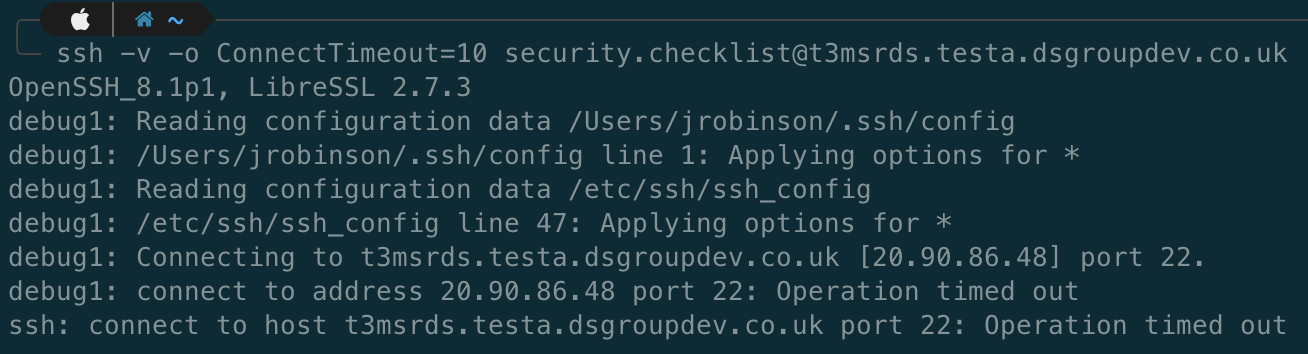

SSH login by fully-qualified domain name fails SRD SSH connection by FQDN not possible

  • Find the public IP address for the remote desktop server VM by searching for this VM in the portal, then looking at Connect under Settings.

    • 🍐 VM name will be GUACAMOLE-SRE-<SRE ID>

  • Attempt to login as the SRE standard user via SSH with ssh <user.name>@<public IP> (e.g. ssh ada.lovelace@8.8.8.8)

Attention

📷 Verify that:

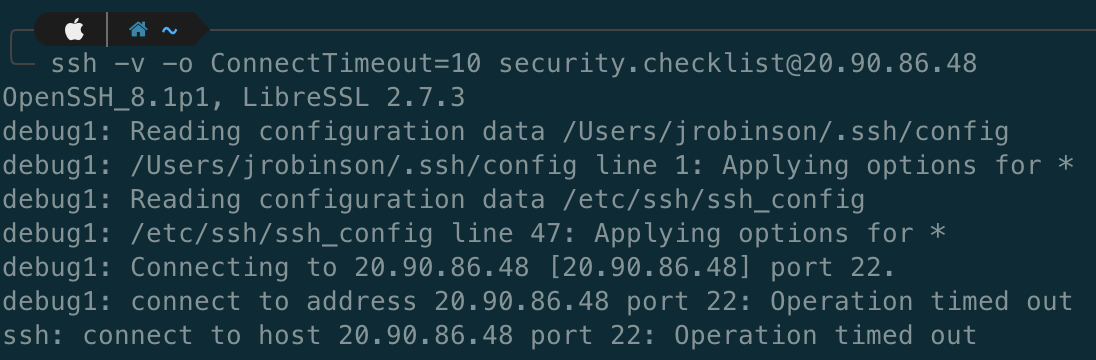

SSH login by public IP address fails SRD SSH connection by IP address not possible

Attention

✅ Verify that: the remote desktop server (RDG-SRE-<SRE ID>) is the only SRE resource with a public IP address

6. Copy-and-paste#

Turing configuration setting:#

  • Users cannot copy something from outside the network and paste it into the network.

  • Users cannot copy something from within the network and paste it outside the network.

Implication:#

  • Copy and paste is disabled on the remote desktop

Verify by:#

Users are unable to copy-and-paste between the SRD and their local device#

  • Copy some text from your deployment device

  • Login to an SRD as the SRE standard user via the remote desktop web client

  • Open up a notepad or terminal on the SRD and attempt to paste the text to it.

Attention

✅ Verify that: paste fails

  • Write some next in the note pad or terminal of the SRD and copy it

  • Attempt to copy the text externally to deployment device (e.g. into URL of browser)

Attention

✅ Verify that: paste fails

Users can copy between VMs inside the network#

  • Login to an SRD as the SRE standard user via the remote desktop web client

  • Open up a notepad or terminal on the SRD and attempt to paste the text to it.

  • In another tab or browser connect to a different SRD (or to the same VM via the SSH connection) using the remote desktop web client

  • Attempt to paste the text to it.

Attention

✅ Verify that: paste succeeds

7. Data ingress#

Turing configuration setting:#

  • Prior to access to the ingress volume being provided, the Dataset Provider Representative must provide the IP address(es) from which data will be uploaded and a secure mechanism by which a time-limited upload token can be sent, such as an encrypted email system.

  • Once these details have been received, the data ingress volume should be opened for data upload.

To minimise the risk of unauthorised access to the dataset while the ingress volume is open for uploads, the following security measures are in place:

  • Access to the ingress volume is restricted to a limited range of IP addresses associated with the Dataset Provider and the host organisation.

  • The Dataset Provider Representative receives a write-only upload token.

    • This allows them to upload, verify and modify the uploaded data, but does not viewing or download of the data.

    • This provides protection against an unauthorised party accessing the data, even they gain access to the upload token.

  • The upload token expires after a time-limited upload window.

  • The upload token is transferred to the Dataset Provider via the provided secure mechanism.

Implication:#

  • All data transfer to the Data Safe Haven should be via our secure data transfer process, which gives the Dataset Provider Representative time-limited, write-only access to a dedicated data ingress volume from a specific location.

  • Data is stored securely until approved for user access.

Verify by:#

To test all the above, you will need to act both as the System Manager and Dataset Provider Representative:

Check that the System Manager can send an upload token to the Dataset Provider Representative over a secure channel#

  • Use the IP address of your own device in place of that of the data provider

  • Generate an upload token with write-only permissions following the instructions in the administrator document.

Attention

✅ Verify that: the upload token is successfully created.

Attention

✅ Verify that: you are able to send this token using a secure mechanism.

Ensure that data ingress works only for connections from the accepted IP address range#

  • As the Dataset Provider Representative, ensure you’re working from a device that has an allow-listed IP address

  • Using the upload token with write-only permissions and limited time period that you set up in the previous step, follow the ingress instructions for the data provider

Attention

✅ Verify that: writing succeeds by uploading a file

Attention

✅ Verify that: attempting to open or download any of the files results in the following error: Failed to start transfer: Insufficient credentials. under the Activities pane at the bottom of the MS Azure Storage Explorer window.

  • Switch to a device that lacks an allow-listed IP address (or change your IP with a VPN)

  • Attempt to write to the ingress volume via the test device

Attention

✅ Verify that: the access token fails.

Check that the upload fails if the token has expired#

  • Create a write-only token with short duration

Attention

✅ Verify that: you can connect and write with the token during the duration

Attention

✅ Verify that: you cannot connect and write with the token after the duration has expired

Attention

✅ Verify that: the overall ingress works by uploading different kinds of files, e.g. data, images, scripts (if appropriate).

8. Data egress#

Turing configuration setting:#

  • Users can write to the /output volume

  • A System Manager can view and download data in the /output volume via Azure Storage Explorer.

Implication:#

  • SREs contain an /output volume, in which SRE users can store data designated for egress.

Verify by:#

Confirm that a non-privileged user is able to read the different storage volumes and write to output#

  • Login to an SRD as the SRE standard user via the remote desktop web client

  • Open up a file explorer and search for the various storage volumes

Attention

✅ Verify that: the /output volume exists and can be read and written to

Attention

✅ Verify that: the permissions of other storage volumes match that described in the user guide.

Confirm that the different volumes exist in blob storage and that logging on requires domain admin permissions#

Attention

✅ Verify that: you can see the files written to the /output storage volume (including any you created as a non-privileged user in step 1)

Attention

✅ Verify that: a written file can be taken out of the environment via download

9. Software ingress#

Turing configuration setting:#

  • For Tier 0 and Tier 1 environments, outbound internet access means users can directly download their software from the internet.

  • For Tier 2 or higher environments we use the secure data transfer process.

  • Installation during deployment

    • If known in advance, software can be installed during SRD deployment whilst there is still internet access, but before project data is added. Once the software is installed, the SRD undergoes ingress into the environment with a one way lock.

  • Installation after deployment

    • Once an SRD has been deployed into the analysis environment it cannot be moved out. There is no outbound internet access.

    • Software is added via ingress in a similar manner to data:

      • Researchers are provided temporary write-only access to the software ingress volume.

      • The access is then revoked and the software is then reviewed.

      • If it passes review, the software is moved into the environment.

    • If the software requires administrator rights to install, a System Manager must do this. Otherwise, the researcher can do this themselves.

Implication:#

  • The base SRD provided in the SREs comes with a wide range of common data science software pre-installed, as well as package mirrors.

  • Additional software must be added separately via ingress.

Verify by:#

Check that some software tools were installed as expected during deployment#

  • Login to an SRD as the SRE standard user via the remote desktop web client

Attention

📷 Verify that:

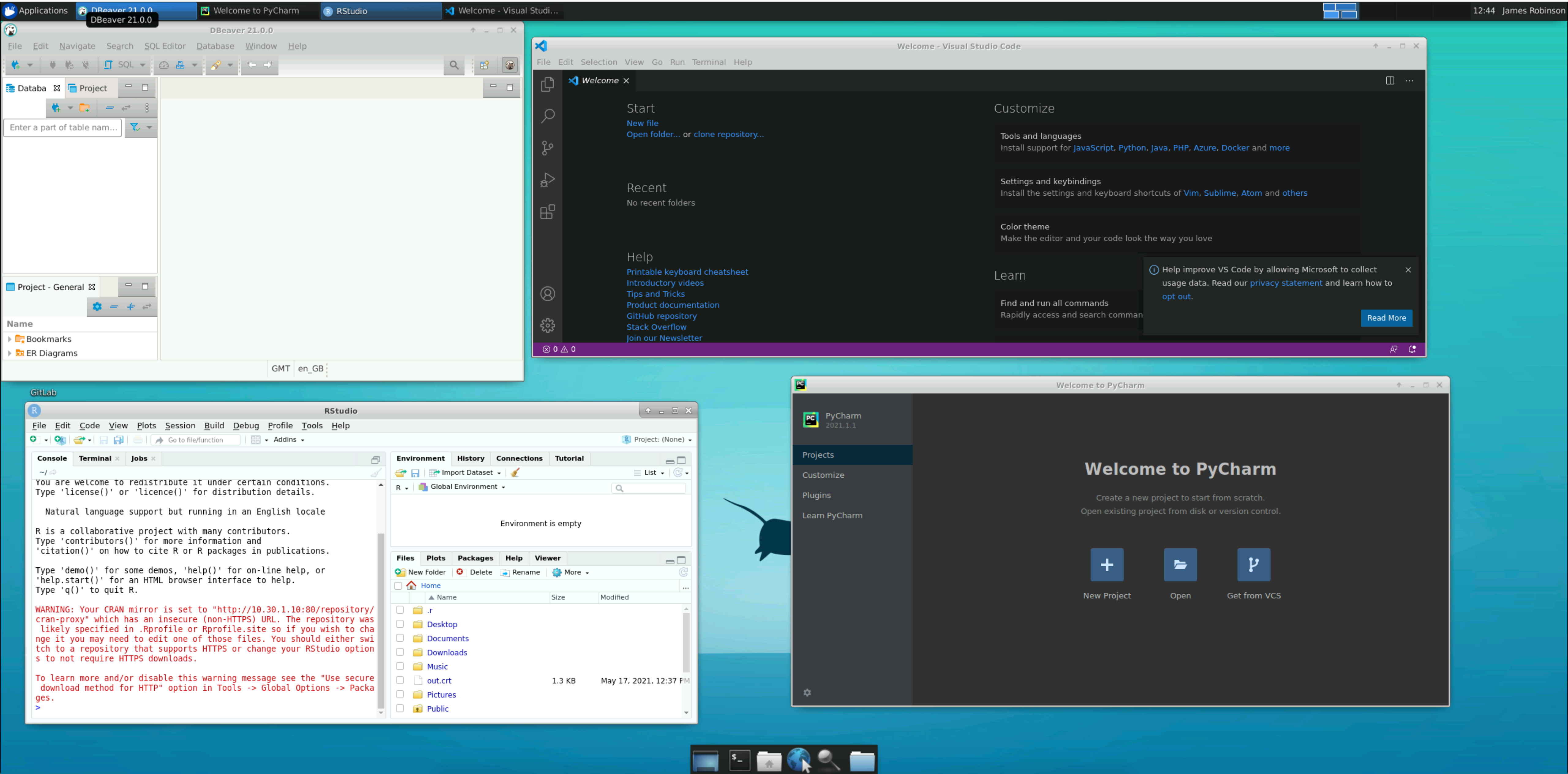

the following programmes can be opened without issue: DBeaver, RStudio, PyCharm and Visual Studio Code SRD installed software

Check that it’s possible to grant and revoke software ingress capability#

Attention

✅ Verify that: you can generate a temporary write-only upload token

Attention

✅ Verify that: you can upload software as a non-admin with this token, but write access is revoked after the temporary token has expired

Attention

✅ Verify that: software uploaded by a non-admin can be read by administrators

Attention

✅ Verify that: the SRE standard user cannot install software that requires administrator rights (e.g. anything that is installed with apt)

10. Software package repositories#

Turing configuration setting::#

  • Tier 2: The user can access any package from our mirrors or via our proxies. They can freely use these packages without restriction.

  • Tier 3: The user can only access a specific pre-agreed set of packages. They will be unable to download any package not on the allowed list.

Implication:#

  • Tier 2: User can access all packages from PyPI/CRAN

  • Tier 3: User can only access approved packages from PyPI/CRAN. Allowed list is in environment_configs/package_lists

Verify by:#

Tier 2: Download a package that is not on the allow list#

  • Login as the SRE standard user into an SRD via remote desktop web client

  • Open up a terminal

  • Attempt to install a package on the allowed list that is not included out-of-the-box (for example, try pip install aero-calc)

Attention

📷 Verify that:

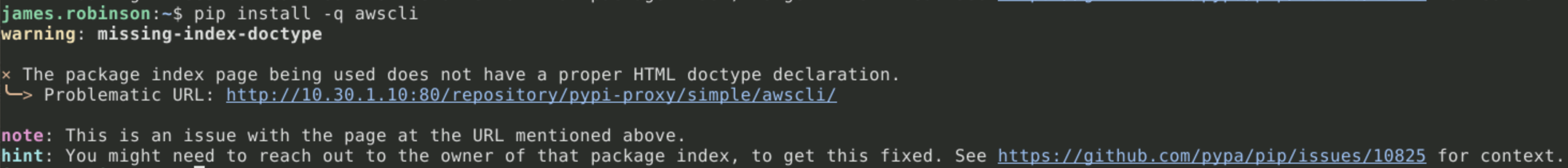

you can install the package SRD PyPI Tier 2

  • Attempt to install any package that is not on the allowed list (for example, try pip install awscli)

Attention

📷 Verify that:

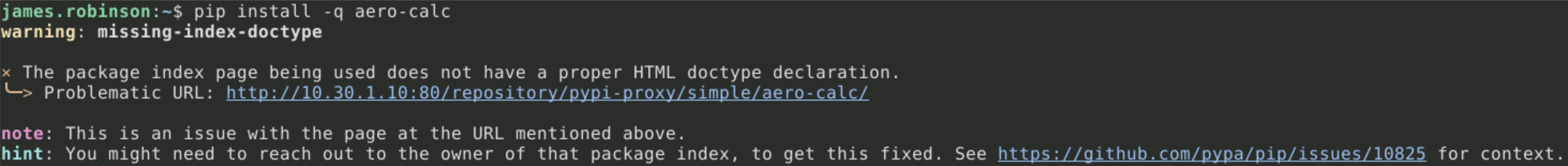

you can install the package SRD PyPI Tier 2

Tier 3: Download a package on the allow list and one not on the allow list#

  • Login as the SRE standard user into an SRD via remote desktop web client

  • Attempt to install a package on the allowed list that is not included out-of-the-box (for example, try pip install aero-calc)

Attention

📷 Verify that:

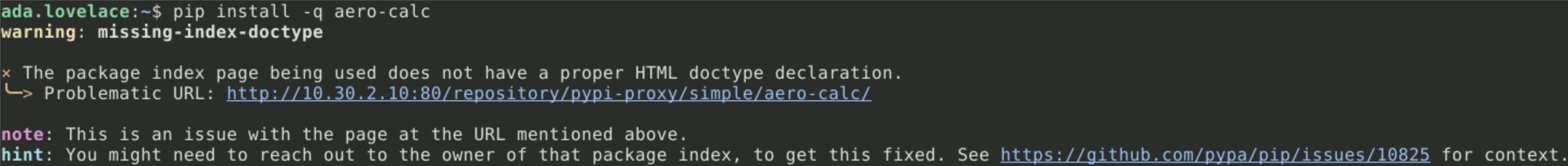

you can install the package SRD PyPI Tier 3

  • Then attempt to download a package that is not included in the allowed list (for example, try pip install awscli)

Attention

📷 Verify that:

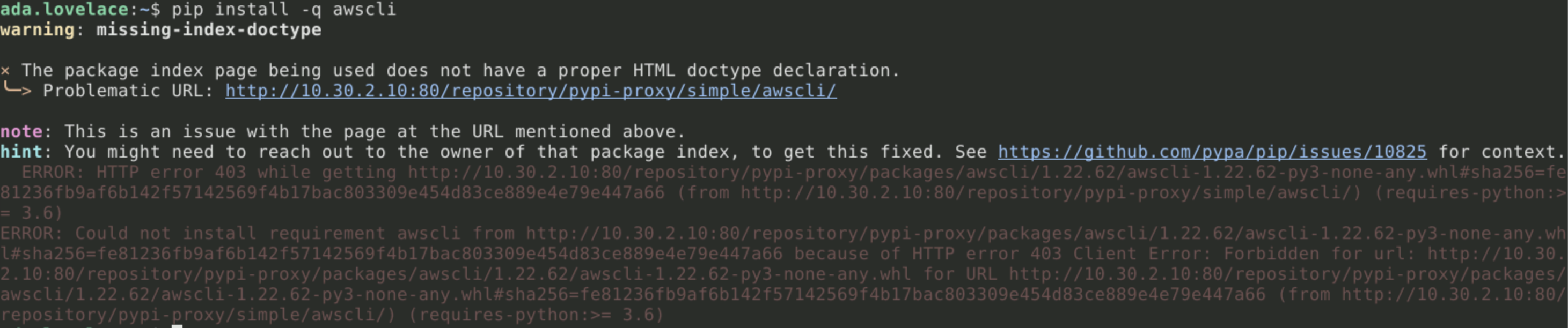

you cannot install the package SRD PyPI Tier 3

11. Firewall controls#

Turing configuration setting:#

  • Whilst all user accessible VMs are entirely blocked off from the internet, this is not the case for administrator-only VMs.

  • An Azure Firewall governs the internet access provided to these VMs, limiting them mostly to downloading system updates.

Implication:#

  • An Azure Firewall ensures that the administrator VMs have the minimal level of internet access required to function.

Verify by:#

Admin has limited access to the internet#

  • As the System Manager use Remote Desktop to connect to the SHM domain controller VM

  • Attempt to connect to a non-approved site, such as www.google.com

Attention

📷 Verify that:

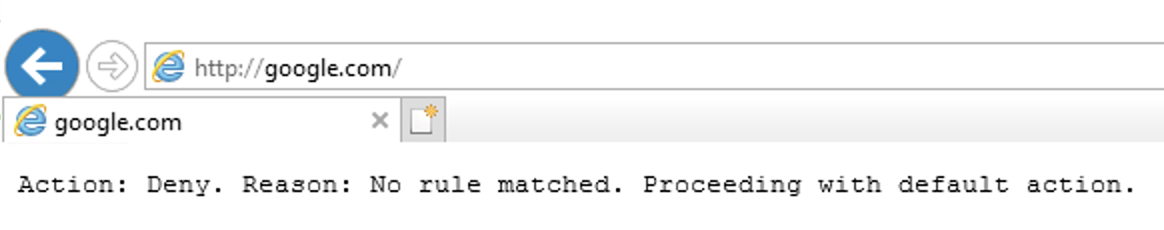

connection fails SHM DC website denied

Admin can download Windows updates#

  • As the System Manager use Remote Desktop to connect to the SHM domain controller VM

  • Click on Start -> Settings-> Update & Security

  • Click the Download button

Attention

📷 Verify that:

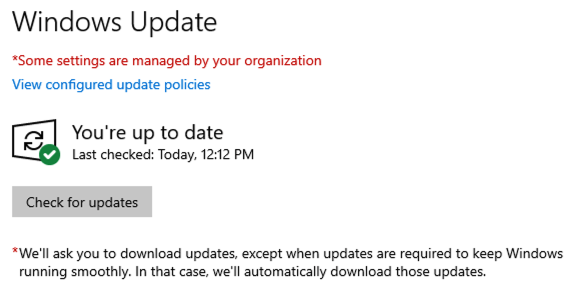

updates download and install successfully SHM DC update allowed
