Deploy a Secure Research Environment with Apache Guacamole#

These instructions will walk you through deploying a Secure Research Environment (SRE) that uses an existing Safe Haven Management (SHM) environment.

Explanation of symbols used in this guide#

Powershell command

Powershell: estimate of time needed

  • This indicates a Powershell command which you will need to run locally on your machine

  • Ensure you have checked out (or downloaded) the appropriate tag of the Safe Haven repository from alan-turing-institute/data-safe-haven.

  • Open a Powershell terminal and navigate to the indicated directory of your locally checked-out version of the Safe Haven repository

  • Ensure that you are logged into Azure by running the Connect-AzAccount command

    Tip

    If your account is a guest in additional Azure tenants, you may need to add the -Tenant <Tenant ID> flag, where <Tenant ID> is the ID of the Azure tenant you want to deploy into.

  • This command will give you a URL and a short alphanumeric code.

  • Go to URL in a web browser, enter the code and log in to your account on Azure.

    Tip

    If you have several Azure accounts, make sure you use one that has permissions to make changes to the subscription you are using

Remote command

Remote: estimate of time needed

  • This indicates a command which you will need to run remotely on an Azure virtual machine (VM) using Microsoft Remote Desktop

  • Open Microsoft Remote Desktop and click Add Desktop / Add PC

  • Enter the private IP address of the VM that you need to connect to in the PC name field (this can be found by looking in the Azure portal)

  • Enter the name of the VM (for example DC1-SHM-PROJECT) in the Friendly name field

  • Click Add

  • Ensure you are connected to the SHM VPN that you have set up

  • Double click on the desktop that appears under Saved Desktops or PCs.

  • Use the username and password specified by the appropriate section of the guide

Tip

If you see a warning dialog that the certificate cannot be verified as root, accept this and continue.

Azure Portal operation

Portal: estimate of time needed

  • This indicates an operation which needs to be carried out in the Azure Portal using a web browser on your local machine.

  • You will need to login to the portal using an account with privileges to make the necessary changes to the resources you are altering

Microsoft Entra ID operation

Microsoft Entra ID: estimate of time needed

  • This indicates an operation which needs to be carried out in the Azure Portal using a web browser on your local machine.

  • You will need to login to the portal using an account with administrative privileges on the Microsoft Entra ID that you are altering.

  • Note that this might be different from the account which is able to create/alter resources in the Azure subscription where you are building the Safe Haven.

OS-dependent steps

The following icons indicate steps that depend on the OS you are using to deploy the SHM

  • macOS MacOS

  • Windows Windows

  • Linux Linux

1. 🌱 Prerequisites#

  • An SHM environment that has already been deployed in Azure

  • All prerequisites needed for deploying the SHM.

  • An Azure subscription with sufficient credits to build the environment in: we recommend around $1,000 as a reasonable starting point.

    • This can be the same or different from the one where the SHM is deployed

    Tip

    • Ensure that the Owner of the subscription is an Azure Security group that contains all administrators and no-one else.

    • We recommend using separate Microsoft Entra IDs for users and administrators

  • Access to a global administrator account on the SHM Microsoft Entra ID

🔰 Software#

  • PowerShell with support for Azure

  • Microsoft Remote Desktop

  • OpenSSL

    • Install using your package manager of choice

Hint

If you run:

PS> Start-Transcript -Path <a log file>

before you start your deployment and

PS> Stop-Transcript

afterwards, you will automatically get a full log of the Powershell commands you have run.

🔑 VPN connection to the SHM VNet#

For some operations, you will need to log on to some of the VMs that you deploy and make manual changes. This is done using the VPN which should have been deployed when setting up the SHM environment.

📛 SRE domain name#

You will need access to a public routable domain name for the SRE and its name servers. This can be a subdomain of the Safe Haven Management domain, e.g, sandbox.project.turingsafehaven.ac.uk, or a top-level domain (eg. mydatasafehaven.co.uk ).

⏫ Deploying multiple SREs in parallel#

Important

You can only deploy to one SRE at a time from a given computer as the Az Powershell module can only work within one Azure subscription at a time.

If you need to deploy multiple SREs in parallel you will need to use multiple computers. These can be different physical computers or you can provision dedicated deployment VMs - this is beyond the scope of this guide.

2. 📋 Secure Research Environment configuration#

The full configuration details for a new SRE are generated by defining a few “core” properties for the new SRE and the management environment in which it will be deployed.

Secure research environment ID#

Choose a short ID <SRE ID> to identify the secure research environment (e.g. sandbox). This can have a maximum of seven alphanumeric characters.

🍎 SHM configuration properties#

The core properties for the relevant pre-existing Safe Haven Management (SHM) environment must be defined in a JSON file named shm_<SHM ID>_core_config.json in the environment_configs folder. Please read the instructions to find out what to put in this file.

🍏 SRE configuration properties#

The core properties for the secure research environment (SRE) must be defined in a JSON file named sre_<SHM ID><SRE ID>_core_config.json in the environment_configs folder. The following core SRE properties are required - look in the environment_configs folder to see some examples.

{
  "sreId": "The <SRE ID> that you decided on above (eg. 'sandbox').",
  "tier": "The data classification tier for the SRE. This controls the outbound network restrictions on the SRE and which mirror set the SRE is peered with",
  "shmId": "The <SHM ID> that you decided on above (eg. 'testa').",
  "subscriptionName": "Azure subscription that the SRE will be deployed into.",
  "ipPrefix": "The three octet IP address prefix for the Class A range used by the SRE. See suggestion below on how to set this",
  "inboundAccessFrom": "A comma-separated string of IP ranges (addresses or CIDR ranges) from which access to the RDS webclient is permitted. See tip default below for suggestion on how to set this.",
  "outboundInternetAccess": "Whether to allow outbound internet access from inside the remote desktop environment. Either ('Yes', 'Allow', 'Permit'), ('No', 'Deny', 'Forbid') or 'default' (for Tier 0 and 1 'Allow' otherwise 'Deny')",
  "computeVmImage": {
    "type": "The name of the SRD image (most commonly 'Ubuntu')",
    "version": "The version of the SRD image (e.g. 0.1.2019082900)"
  },
  "remoteDesktopProvider": "[Deprecated] Only 'ApacheGuacamole' is supported. If this parameter is not supplied, it will default to 'ApacheGuacamole'",
  "azureAdminGroupName": "[Optional] Azure Security Group that admins of this SRE will belong to. If not specified then the same one as the SHM will be used.",
  "dataAdminIpAddresses": "A list of one or more IP addresses which admins will be using to transfer sensitive data to/from the secure Azure storage area (if not specified then Turing IP addresses will be used).",
  "databases": "[Optional] A list of zero or more database flavours from the following list ('MSSQL', 'PostgreSQL'). For example ['MSSQL', 'PostgreSQL'] would deploy both an MS-SQL and a PostgreSQL database.",
  "deploymentIpAddresses": "[Optional] A list of one or more IP addresses which admins will be using when deploying the SRE (if not specified then deployment commands from any IP address will be permitted).",
  "domain": "[Optional] The fully qualified domain name for the SRE. If not specified then <SRE ID>.<SHM domain> will be used.",
  "overrides": "[Optional, Advanced] Do not use this unless you know what you're doing! If you want to override any of the default settings, you can do so by creating the same JSON structure that would be found in the final config file and nesting it under this entry. For example, to change the name of the Key Vault secret containing the MSSQL admin password, you could use something like: 'sre: { databases: { dbmssql: { adminPasswordSecretName: my-password-name } } }'"
}

Tip

We recommend the following for the inboundAccessFrom setting

  • Tier 0/1 SREs: this can be set to Internet, allowing access from anywhere.

  • Tier 2 SREs: this should correspond to the IP addresses of organisational networks (including guest networks) for all approved partner organisations (i.e. specific networks managed by the organisation, such as EduRoam, Turing Guest, Turing Secure)

  • Tier 3 SREs: this should correspond to the IP addresses of restricted networks for all approved partner organisations. These should only permit connections from within medium security access controlled physical spaces and from managed devices (e.g. Turing Secure).

Important

The ipPrefix must be unique for each SRE attached to the same SHM. Each SRE needs a range of 2048 IP address (a /21 range in CIDR notation) in a private IP range. The config itself expects the first three digits denoting the range (e.g. "ipPrefix": "10.11.0.0" rather than "ipPrefix": "10.11.0.0/21") It is important that the range chosen doesn’t overlap with the SHM (by default 10.0.0.0 - 10.0.7.255), the package repositories (by default 10.10.2.0-10.10.3.255) or any other SRE. You may find this tool helpful to convert between IP address ranges and CIDRs.

Alan Turing Institute default

We assign consecutive /21 ranges starting from 10.11.0.0/21 (ie. the first three SREs will use 10.11.0.0/21, 10.11.8.0/21 and 10.11.16.0/21).

(Optional) Verify code version#

If you have cloned/forked the code from our GitHub repository, you can confirm which version of the Data Safe Haven you are currently using by running the following commands:

Powershell: a few seconds

PS> git tag --list | Select-String $(git describe --tags)

This will check the tag you are using against the list of known tags and print it out. You can include this confirmation in any record you keep of your deployment.

(Optional) 🌕 View full SRE configuration#

A full configuration, which will be used in subsequent steps, will be automatically generated from your core configuration. Should you wish to, you can print the full SRE config by running the following Powershell command:

Powershell: a few seconds at 📁 ./deployment

PS> ./ShowConfigFile.ps1 -shmId <SHM ID> -sreId <SRE ID>

3. 💻 Deploy SRE#

Powershell: a few hours at 📁 ./deployment/secure_research_environment/setup

PS> ./Deploy_SRE.ps1 -shmId <SHM ID> -sreId <SRE ID> -VMs <VM sizes>

You will be prompted for credentials for:

  • a user with admin rights over the Azure subscriptions you plan to deploy into

  • a user with Global Administrator privileges over the SHM Microsoft Entra ID

This will perform the following actions, which can be run individually if desired:

Remove data from previous deployments

Caution

If you are redeploying an SRE in the same subscription and did not use the ./SRE_Teardown.ps1 script to clean up the previous deployment, then there may be residual SRE data in the SHM.

This script will remove any such data.

Note

If the subscription is not empty, confirm that it is not being used before deleting any resources in it.

Powershell: a few minutes at 📁 ./deployment/secure_research_environment/setup

PS> ./Remove_SRE_Data_From_SHM.ps1 -shmId <SHM ID> -sreId <SRE ID>
Register SRE with the SHM

Powershell: a few minutes at 📁 ./deployment/secure_research_environment/setup

PS> ./Setup_SRE_Key_Vault_And_Users.ps1 -shmId <SHM ID> -sreId <SRE ID>

This step will register service accounts with the SHM and also create a Key Vault in the SRE subscription (at Resource Groups > RG_SHM_<SHM ID>_SRE_<SRE ID>_SECRETS > kv-<SHM ID>-sre-<SRE ID>).

Create SRE DNS Zone

Powershell: one minute at 📁 ./deployment/secure_research_environment/setup

PS> ./Setup_SRE_DNS_Zone.ps1 -shmId <SHM ID> -sreId <SRE ID>

Error

If you see a message You need to add the following NS records to the parent DNS system for... you will need to manually add the specified NS records to the parent’s DNS system, as follows:

Manual DNS configuration instructions

Portal: one minute

  • To find the required values for the NS records on the portal, click All resources in the far left panel, search for “DNS Zone” and locate the DNS Zone with SRE’s domain. The NS record will list 4 Azure name servers.

    SHM NS record

  • Duplicate these records to the parent DNS system as follows:

    • If the parent domain has an Azure DNS Zone, create an NS record set in this zone.

      • The name should be set to the subdomain (e.g. sandbox ) or @ if using a custom domain, and the values duplicated from above.

      • For example, for a new subdomain sandbox.testa.dsgroupdev.co.uk , duplicate the NS records from the Azure DNS Zone sandbox.testa.dsgroupdev.co.uk to the Azure DNS Zone for testa.dsgroupdev.co.uk, by creating a record set with name sandbox.

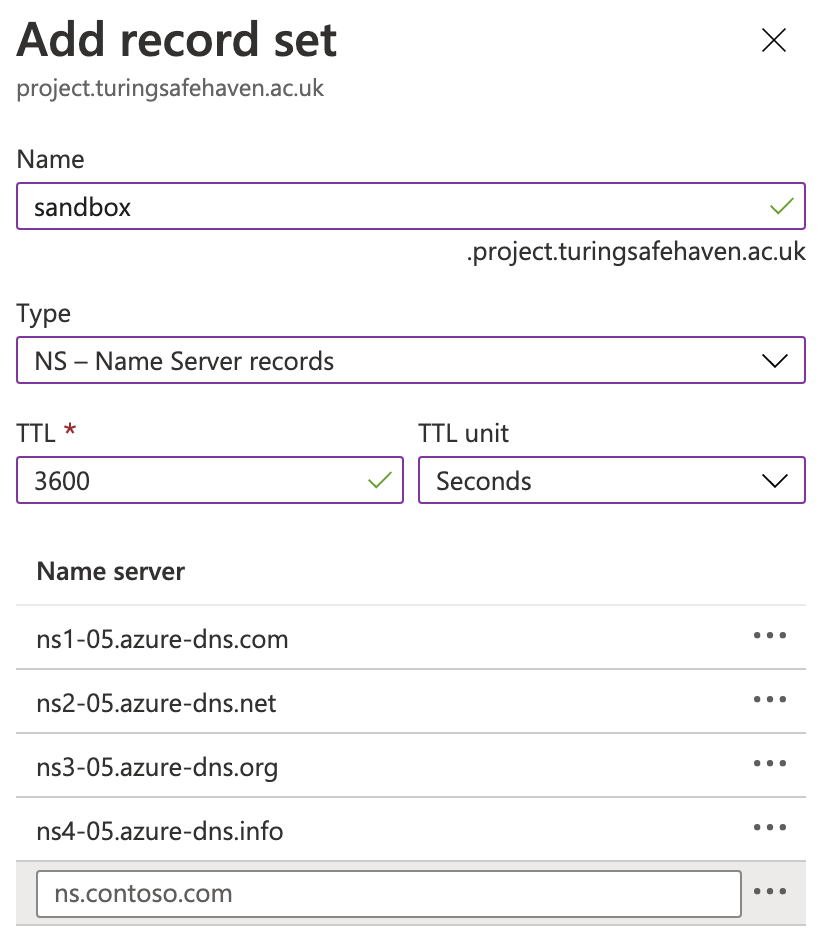

        SRE NS record

    • If the parent domain is outside of Azure, create NS records in the registrar for the new domain with the same value as the NS records in the new Azure DNS Zone for the domain.

Deploy the virtual network

Powershell: five minutes at 📁 ./deployment/secure_research_environment/setup

PS> ./Setup_SRE_Networking.ps1 -shmId <SHM ID> -sreId <SRE ID>

Note

The VNet peerings may take a few minutes to provision after the script completes.

Deploy storage accounts

Powershell: ten minutes at 📁 ./deployment/secure_research_environment/setup

PS> ./Setup_SRE_Storage_Accounts.ps1 -shmId <SHM ID> -sreId <SRE ID>

This script will create a storage account in the RG_SHM_<SHM ID>_PERSISTENT_DATA resource group, a corresponding private end point in RG_SRE_<SRE ID>_NETWORKING and will configure the DNS zone of the storage account to the right IP address.

Deploy Apache Guacamole remote desktop

Powershell: ten minutes at 📁 ./deployment/secure_research_environment/setup

PS> ./Setup_SRE_Guacamole_Servers.ps1 -shmId <SHM ID> -sreId <SRE ID>
Update SSL certificate

Powershell: five minutes at 📁 ./deployment/secure_research_environment/setup

PS> ./Update_SRE_SSL_Certificate.ps1 -shmId <SHM ID> -sreId <SRE ID>

Tip

./Update_SRE_RDS_SSL_Certificate.ps1 should be run again whenever you want to update the certificate for this SRE.

Caution

Let's Encrypt will only issue 5 certificates per week for a particular host (e.g. rdg-sre-sandbox.project.turingsafehaven.ac.uk). To reduce the number of calls to Let's Encrypt, the signed certificates are stored in the Key Vault for easy redeployment. For production environments this should usually not be an issue.

Important

If you find yourself frequently redeploying a test environment and hit the Let's Encrypt certificate limit, you can can use:

> ./Update_SRE_RDS_SSL_Certificate.ps1 -dryRun $true

to use the Let's Encrypt staging server, which will issue certificates more frequently. These certificates will not be trusted by your browser, and so should not be used in production.

Deploy web applications (CodiMD and GitLab)

Powershell: fifty minutes at 📁 ./deployment/secure_research_environment/setup

PS> ./Setup_SRE_WebApp_Servers.ps1 -shmId <SHM ID> -sreId <SRE ID>
Deploy databases

Powershell: up to seventy minutes at 📁 ./deployment/secure_research_environment/setup

PS> ./Setup_SRE_Databases.ps1 -shmId <SHM ID> -sreId <SRE ID>

This will deploy any databases that you specified in the core config file. The time taken will depend on which (if any) databases you chose.

Important

  • The deployment of an MS-SQL database will take around 60 minutes to complete.

  • The deployment of a PostgreSQL database will take around 10 minutes to complete.

Deploy Secure Research Desktops (SRDs)

The -VmSizes parameter that you provided to the Deploy_SRE.ps1 script determines how many SRDs are created and how large each one will be.

Note

The following script will be run once for each <VM size> that you specified. If you specify the same size more than once, you will create multiple SRDs of that size.

Powershell: ten minutes at 📁 ./deployment/secure_research_environment/setup

PS> ./Add_Single_SRD.ps1 -shmId <SHM ID> -sreId <SRE ID> -ipLastOctet <IP last octet> [-vmSize <VM size>]

This will deploy a new SRD into the SRE environment.

Tip

If this SRE needs additional software or settings that are not in your default VM image, you can create a custom cloud init file on your deployment machine.

  • By default, SRD deployments will use the cloud-init-srd.mustache.yaml configuration file in the deployment/secure_research_environment/cloud_init/ folder. This does all the necessary steps to configure the VM to work with LDAP.

  • If you require additional steps to be taken at deploy time while the VM still has access to the internet (e.g. to install some additional project-specific software), copy the default cloud init file to a file named cloud-init-srd-shm-<SHM ID>-sre-<SRE ID>.mustache.yaml in the same folder and add any additional required steps in the SRE-SPECIFIC COMMANDS block marked with comments.

Alan Turing Institute default

  • CPU-based VMs are deployed with the next unused last octet in the range 160 to 179

  • GPU-based VMs are deployed with the next unused last octet in the range 180 and 199

Apply network configuration

Powershell: ten minutes at 📁 ./deployment/secure_research_environment/setup

PS> ./Apply_SRE_Network_Configuration.ps1 -shmId <SHM ID> -sreId <SRE ID>

This will apply the locked-down network settings which will restrict access into/out of this SRE.

Configure firewall

Powershell: a few minutes at 📁 ./deployment/secure_research_environment/setup

PS> ./Setup_SRE_Firewall.ps1 -shmId <SHM ID> -sreId <SRE ID>
Configure monitoring

Powershell: thirty minutes at 📁 ./deployment/secure_research_environment/setup

PS> ./Setup_SRE_Monitoring.ps1 -shmId <SHM ID> -sreId <SRE ID>

Error

As installing the logging agent can take several minutes, it is possible that some of the commands run in this script might time out. The script should automatically retry any that fail, if you see any failure messages, please re-run:

PS> ./Setup_SRE_Monitoring.ps1 -shmId $shmId -sreId $sreId

this will attempt to install the extensions again, skipping any VMs that already have the extensions installed.

Enable backup

Powershell: a few minutes at 📁 ./deployment/secure_research_environment/setup

PS> ./Setup_SRE_Backup.ps1 -shmId <SHM ID> -sreId <SRE ID>

This will enable regular backups for the persistent data storage accounts, both ingress and egress data.

4. 🔬 Test deployed SRE#

🚴 Verify non-privileged user account is set up#

These steps ensure that you have created a non-privileged user account that you can use for testing. You must ensure that you have assigned a licence to this user in the Microsoft Entra ID so that MFA will work correctly.

You should have already set up a non-privileged user account upon setting up the SHM, when validating the active directory synchronisation, but you may wish to set up another or verify that you have set one up already:

Set up a non-privileged user account

Remote: five minutes

  • Log into the SHM primary domain controller (DC1-SHM-<SHM ID>) VM using the connection details that you previously used to log into this VM.

  • Follow the user creation instructions from the SHM deployment guide (everything under the Validate Active Directory synchronisation header). In brief these involve:

    • adding your details (ie. your first name, last name, phone number etc.) to a user details CSV file.

    • running C:\Installation\CreateUsers.ps1 <path_to_user_details_file> in a Powershell command window with elevated privileges.

  • This will create a user in the local Active Directory on the SHM domain controller and start the process of synchronisation to the Azure Active Directory, which will take around 5 minutes.

Ensure that your non-privileged user account is in the correct Security Group

Remote: five minutes

  • Log into the SHM primary domain controller (DC1-SHM-<SHM ID>) VM using the connection details that you previously used to log into this VM.

  • In Server Manager click Tools > Active Directory Users and Computers

  • In Active Directory Users and Computers, expand the domain in the left hand panel click Safe Haven Security Groups

  • Right click the SG <SRE ID> Research Users security group and select Properties

  • Click on the Members tab.

  • If your user is not already listed here you must add them to the group

    • Click the Add button

    • Enter the start of your username and click Check names

    • Select your username and click Ok

    • Click Ok again to exit the Add users dialogue

  • Synchronise with Microsoft Entra ID by running following the Powershell command on the SHM primary domain controller

PS> C:\Installation\Run_ADSync.ps1

🔐 Ensure that your non-privileged user account has MFA enabled#

Switch to your custom Microsoft Entra ID in the Azure portal and make the following checks:

Microsoft Entra ID: one minute

  • From the Azure portal, navigate to the Microsoft Entra ID you have created.

  • The Usage Location must be set in Microsoft Entra ID (should be automatically synchronised from the local Active Directory if it was correctly set there)

    • Navigate to Microsoft Entra ID > Manage / Users > (user account), and ensure that Settings > Usage Location is set.

  • A licence must be assigned to the user.

    • Navigate to Microsoft Entra ID > Manage / Users > (user account) > Licenses and verify that a license is assigned and the appropriate MFA service enabled.

To complete the account setup, follow the instructions for password and MFA setup present in the user guide.

🍐 Test the Apache Guacamole remote desktop#

  • Launch a local web browser on your deployment machine and go to https://<SRE ID>.<safe haven domain> and log in with the user name and password you set up for the non-privileged user account.

    • For example for <safe haven domain> = project.turingsafehaven.ac.uk and <SRE ID> = sandbox this would be https://sandbox.project.turingsafehaven.ac.uk/

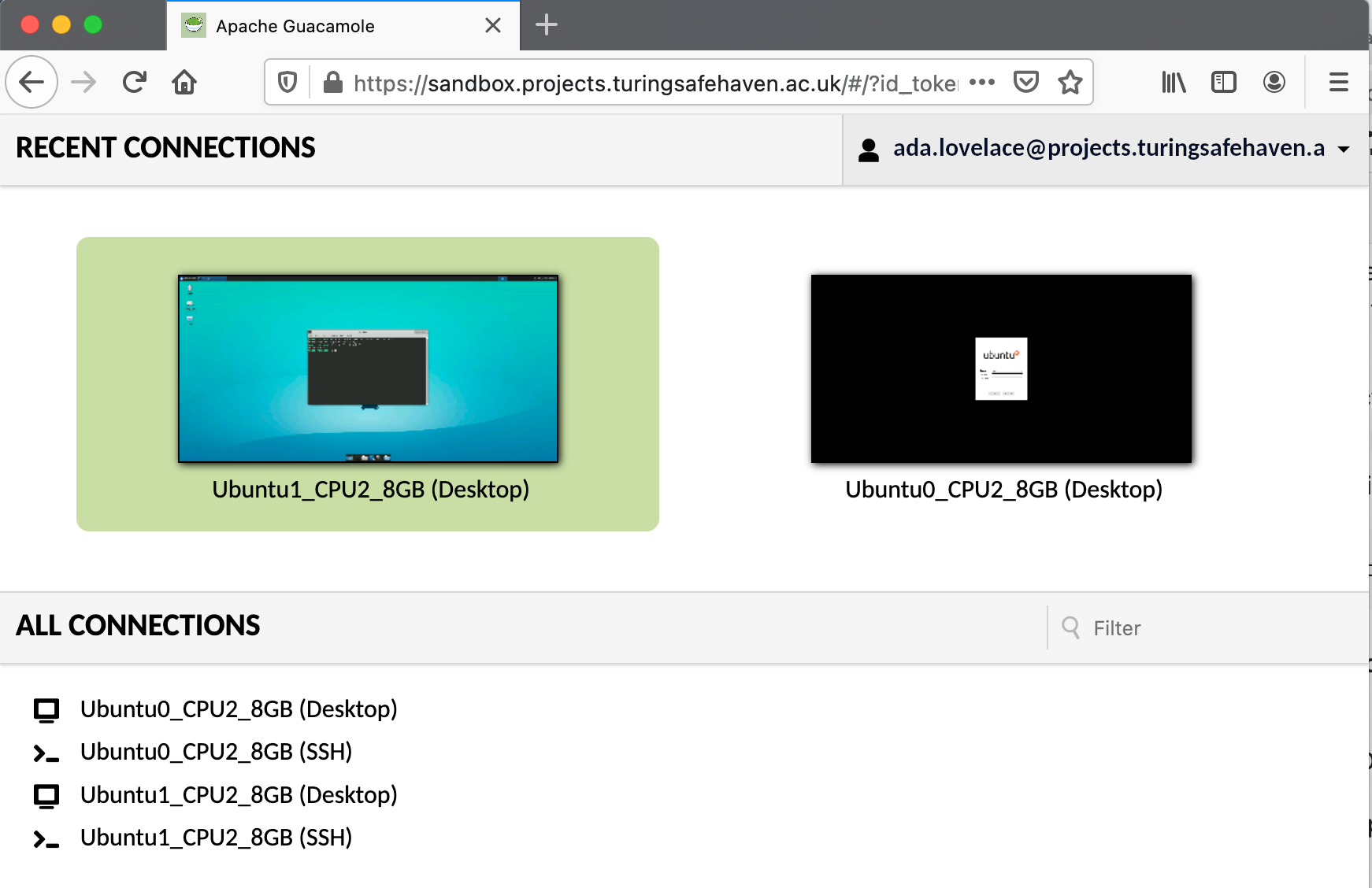

  • You should see a screen like the following. If you do not, follow the troubleshooting instructions below.

    Guacamole dashboard

  • At this point you should double click on the 💻 Ubuntu0 link under All Connections which should bring you to the secure remote desktop (SRD) login screen

  • You will need the short-form of the user name (ie. without the @<safe haven domain> part) and the same password as before

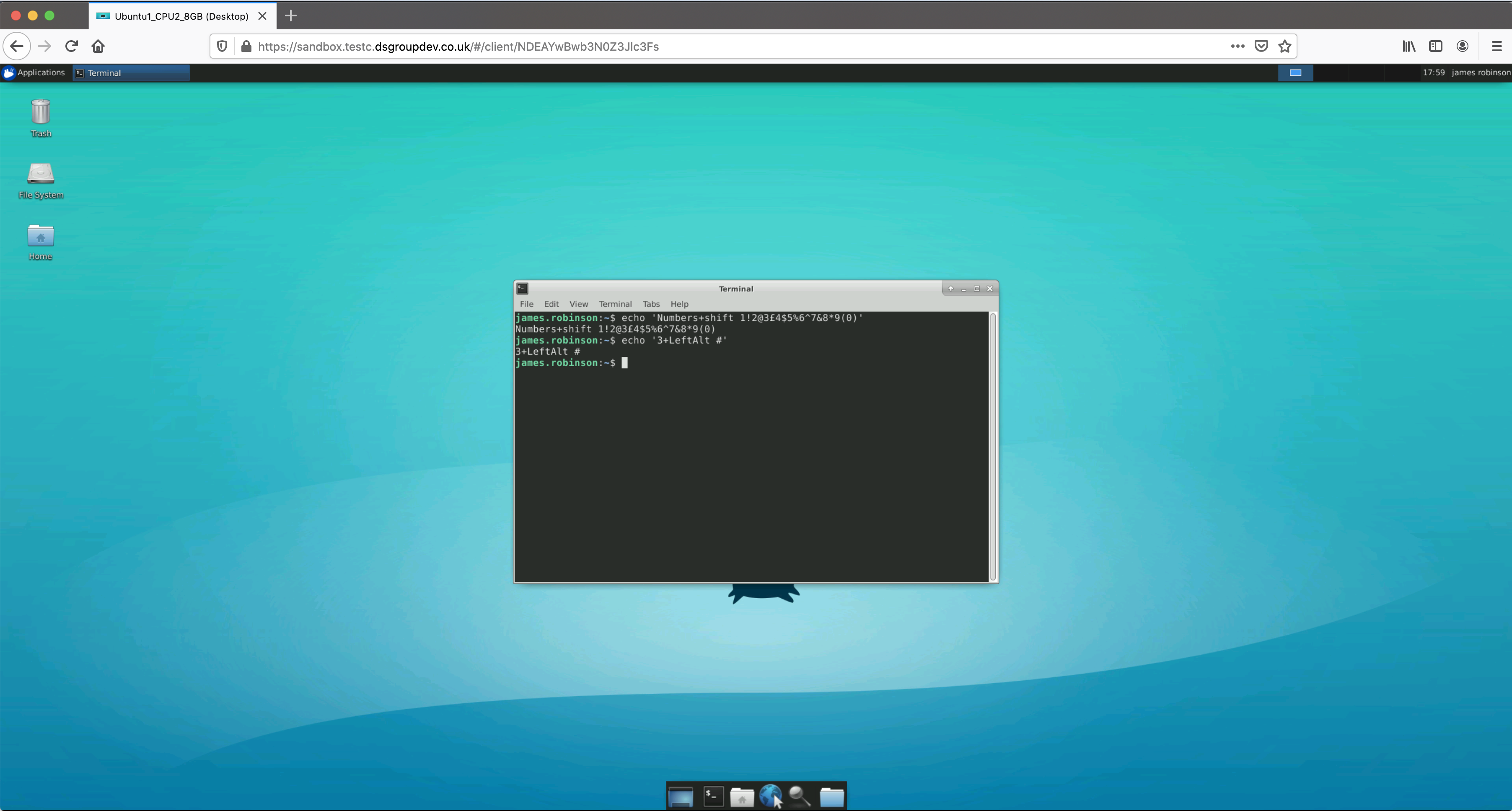

  • This should bring you to the SRD that will look like the following

    Guacamole dashboard

Important

Ensure that you are connecting from one of the permitted IP ranges specified in the inboundAccessFrom section of the SRE config file. For example, if you have authorised a corporate VPN, check that you have correctly configured you client to connect to it.

Error

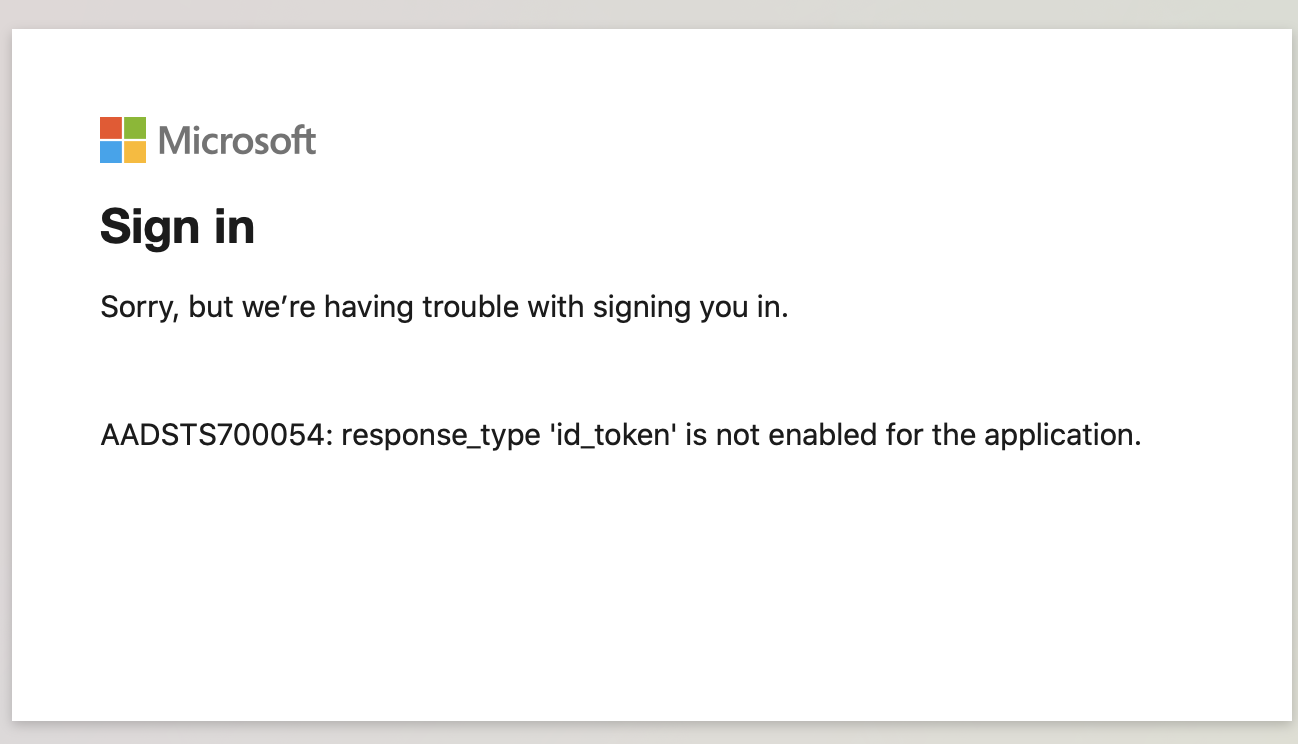

If you see an error like the following when attempting to log in, it is likely that the Microsoft Entra application is not registered as an ID token provider.

AAD ID token failure
Register Microsoft Entra application

![Microsoft Entra ID: one minute](https://img.shields.io/static/v1?style=for-the-badge&logo=microsoft-academic&label=Microsoft%20Entra%2 0ID&color=blue&message=one%20minute)

  • From the Azure portal, navigate to the Microsoft Entra ID you have created.

  • Navigate to Microsoft Entra ID > App registrations, and select the application called Guacamole SRE <SRE ID>.

  • Click on Authentication on the left-hand sidebar

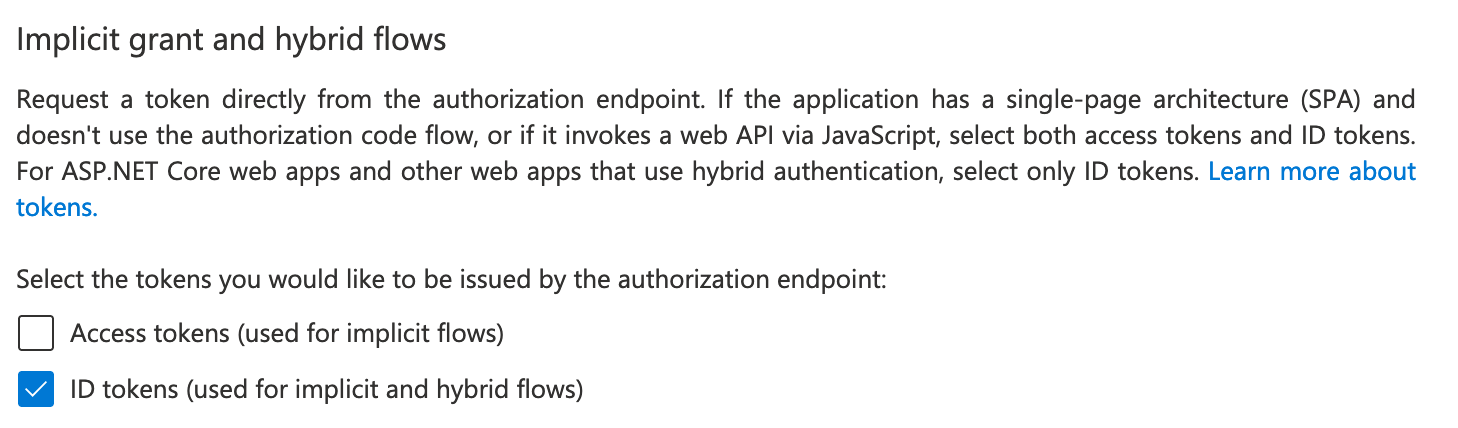

  • Ensure that the ID tokens checkbox is ticked and click on the Save icon if you had to make any changes

    Microsoft Entra app registration

❄️ Test CodiMD and GitLab servers#

  • Connect to the remote desktop using the instructions above

  • Test CodiMD by clicking on the CodiMD desktop icon.

    • This should open a web browser inside the remote desktop

    • Log in with the short-form username of a user in the SG <SRE ID> Research Users security group.

  • Test GitLab by clicking on the GitLab desktop icon.

    • This should open a web browser inside the remote desktop

    • Log in with the short-form username of a user in the SG <SRE ID> Research Users security group.

Error

Should there be any issues using the web apps (e.g. unable to log in, or log in page not appearing) you can inspect the build log and access the console for the relevant VMs following the guide for System Managers

🔥 Run smoke tests on SRD#

These tests should be run after the network lock down and peering the SRE and package mirror VNets. They are automatically uploaded to the SRD during the deployment step.

Remote: five minutes

  • Use the remote desktop interface at https://<SRE ID>.<safe haven domain> to log in to the SRD (SRE-<SRE ID>-<IP last octet>-<version number>) that you have deployed using the scripts above

  • Open a terminal session

  • Enter the test directory using cd /opt/tests

  • Run bats run_all_tests.bats:

    • if any of the tests fail, check the README.md in this folder for help in diagnosing the issues

  • Copy tests/test_jupyter.ipynb to your home directory

    • activate each of the available Python versions in turn

    • run jupyter notebook in each case and check that you can run the notebook and that all versions and paths match throughout. See Available Python and R versions
