Deploy a Safe Haven Management Environment (SHM)#

These instructions will deploy a new Safe Haven Management Environment (SHM). This is required to manage your Secure Research Environments (SREs) and must be deployed before you create any SREs. A single SHM can manage all your SREs. Alternatively, you may run multiple SHMs concurrently, for example you may have a group of projects with the same lifecycle which share a different SHM to your other projects.

Explanation of symbols used in this guide#

Powershell command

This indicates a Powershell command which you will need to run locally on your machine
Ensure you have checked out (or downloaded) the appropriate tag of the Safe Haven repository from alan-turing-institute/data-safe-haven.
Open a Powershell terminal and navigate to the indicated directory of your locally checked-out version of the Safe Haven repository
Ensure that you are logged into Azure by running the Connect-AzAccount command

Tip

If your account is a guest in additional Azure tenants, you may need to add the -Tenant <Tenant ID> flag, where <Tenant ID> is the ID of the Azure tenant you want to deploy into.
This command will give you a URL and a short alphanumeric code.
Go to URL in a web browser, enter the code and log in to your account on Azure.

Tip

If you have several Azure accounts, make sure you use one that has permissions to make changes to the subscription you are using

Remote command

This indicates a command which you will need to run remotely on an Azure virtual machine (VM) using Microsoft Remote Desktop
Open Microsoft Remote Desktop and click Add Desktop / Add PC
Enter the private IP address of the VM that you need to connect to in the PC name field (this can be found by looking in the Azure portal)
Enter the name of the VM (for example DC1-SHM-PROJECT) in the Friendly name field
Click Add
Ensure you are connected to the SHM VPN that you have set up
Double click on the desktop that appears under Saved Desktops or PCs.
Use the username and password specified by the appropriate section of the guide

Tip

If you see a warning dialog that the certificate cannot be verified as root, accept this and continue.

Azure Portal operation

This indicates an operation which needs to be carried out in the Azure Portal using a web browser on your local machine.
You will need to login to the portal using an account with privileges to make the necessary changes to the resources you are altering

Azure Active Directory operation

This indicates an operation which needs to be carried out in the Azure Portal using a web browser on your local machine.
You will need to login to the portal using an account with administrative privileges on the Azure Active Directory that you are altering.
Note that this might be different from the account which is able to create/alter resources in the Azure subscription where you are building the Safe Haven.

OS-dependent steps

The following icons indicate steps that depend on the OS you are using to deploy the SHM

MacOS
Windows
Linux

1. 🌱 Prerequisites#

An Azure subscription with sufficient credits to build the environment in: we recommend around $3,000 as a reasonable starting point.
Tip
- Ensure that the Owner of the subscription is an Azure Security group that contains all administrators and no-one else.
- We recommend using separate Azure Active Directories for users and administrators
PowerShell
- Install PowerShell v7.0 or above
Powershell cross-platform modules
Tip

Check whether you are missing any required modules by running
```
PS> ./deployment/CheckRequirements.ps1
```
Either manually install each missing module or install them all with
```
PS> ./deployment/CheckRequirements.ps1 -InstallMissing
```
Microsoft Remote Desktop
- this can be installed from the Apple store
- this can be downloaded from Microsoft
- use your favourite remote desktop client
OpenSSL
- a pre-compiled version can be installed using Homebrew: brew install openssl
- binaries are available here.

  Error

  If Powershell cannot detect OpenSSL you may need to explicitly add your OpenSSL installation to your Powershell path by running $env:path = $env:path + ";<path to OpenSSL bin directory>
- use your favourite package manager or install manually following the instructions on GitHub

Hint

If you run:

PS> Start-Transcript -Path <a log file>

before you start your deployment and

PS> Stop-Transcript

afterwards, you will automatically get a full log of the Powershell commands you have run.

2. 📋 Safe Haven Management configuration#

Management environment ID#

Important

Choose a short ID <SHM ID> to identify the management environment (e.g. project). This can have a maximum of seven alphanumeric characters.

Create configuration file#

The core properties for the Safe Haven Management (SHM) environment must be defined in a JSON file named shm_<SHM ID>_core_config.json in the environment_configs folder. The following core SHM properties are required - look in the environment_configs folder to see some examples.

{
  "name": "Name of this Safe Haven (e.g. 'Turing Production Safe Haven').",
  "shmId": "The <SHM ID> that you decided on above (e.g. 'project').",
  "domain": "The fully qualified domain name for the management environment (e.g. 'project.turingsafehaven.ac.uk')",
  "timezone": "[Optional] Timezone in IANA format (e.g. 'Europe/London').",
  "azure": {
    "adminGroupName": "Azure Security Group that admins of this Safe Haven will belong to (see below for details).",
    "activeDirectoryTenantId": "Tenant ID for the Azure Active Directory containing users (see below for details on how to obtain this).",
    "location": "Azure location to deploy the management environment into (e.g. 'uksouth').",
    "subscriptionName": "Azure subscription to deploy the management environment into."
  },
  "organisation": {
    "name": "Name of your organisation, used when generating SSL certificates (e.g. 'The Alan Turing Institute')",
    "townCity": "Town where your organisation is located, used when generating SSL certificates (e.g. 'London')",
    "stateCountyRegion": "Region where your organisation is located, used when generating SSL certificates (e.g. 'London')",
    "countryCode": "Country where your organisation is located, used when generating SSL certificates (e.g. 'GB')",
    "contactEmail": "Email address at your organisation that will receive notifications when SSL certificates are about to expire."
  },
  "dnsRecords": {
    "subscriptionName": "[Optional] Azure subscription which holds DNS records (if not specified then the value from the 'azure' block will be used).",
    "resourceGroupName": "[Optional] Resource group which holds DNS records (e.g. RG_SHM_DNS_TEST)."
  },
  "repositoryType": {
    "tier2": "[Optional] Whether to use 'mirror' or 'proxy' for tier-2 repositories (default is 'proxy').",
    "tier3": "[Optional] Whether to use 'mirror' or 'proxy' for tier-3 repositories (default is 'proxy')."
  },
  "vmImages": {
    "subscriptionName": "[Optional] Azure subscription where VM images will be built (if not specified then the value from the 'azure' block will be used). Multiple Safe Haven deployments can share a single set of VM images in a common subscription if desired - this is what is done in the Turing deployment. If you are hoping to use images that have already been built for another Safe Haven deployment, make sure you specify this parameter accordingly.",
    "location": "[Optional] Azure location where VM images should be built (if not specified then the value from the 'azure' block will be used). Multiple Safe Haven deployments can share a single set of VM images in a common subscription if desired - this is what is done in the Turing deployment. If you are hoping to use images that have already been built for another Safe Haven deployment, make sure you specify this parameter accordingly.",
    "buildIpAddresses": "[Optional] One or more IP addresses which admins will be running the VM build scripts from (if not specified then Turing IP addresses will be used)."
  },
  "overrides": "[Optional, Advanced] Do not use this unless you know what you're doing! If you want to override any of the default settings, you can do so by creating the same JSON structure that would be found in the final config file and nesting it under this entry. For example, to change the size of the data disk on the domain controller, you could use something like: 'shm: { dc: { disks: { data: { sizeGb: 50 } } } }'"
}

Note

This configuration file is also used when deploying an SRE environment.
We recommend that you set the fully qualified domain name to <SHM ID>.<some domain that you control>.
This may require purchasing a dedicated domain so follow your organisation’s guidance.
You must ensure that the group specifed in azure.adminGroupName exists in the AzureAD for the tenant that you will be deploying into. Depending on your setup, this may be different from the AzureAD where your users are created.

Alan Turing Institute default

production uses <SHM ID>.turingsafehaven.ac.uk
development uses <SHM ID>.dsgroupdev.co.uk

(Optional) Verify code version#

If you have cloned/forked the code from our GitHub repository, you can confirm which version of the Data Safe Haven you are currently using by running the following commands:

PS> git tag --list | Select-String $(git describe --tags)

This will check the tag you are using against the list of known tags and print it out. You can include this confirmation in any record you keep of your deployment.

(Optional) View full SHM configuration#

A full configuration, which will be used in subsequent steps, will be automatically generated from your core configuration. Should you wish to, you can print the full SHM config by running the following Powershell command:

at 📁 ./deployment

PS> ./ShowConfigFile.ps1 -shmId <SHM ID>

where <SHM ID> is the management environment ID for this SHM

3. 📁 Setup Azure Active Directory (AAD)#

Warning

If you wish to reuse an existing Azure Active Directory please make sure you remove any existing Conditional Access Policies by going to Security > Conditional Access > Policies and manually removing the Restrict Azure Active Directory access and Require MFA policies. You can then continue to the next step: getting the Azure AD tenant ID.

Create a new Azure Active Directory#

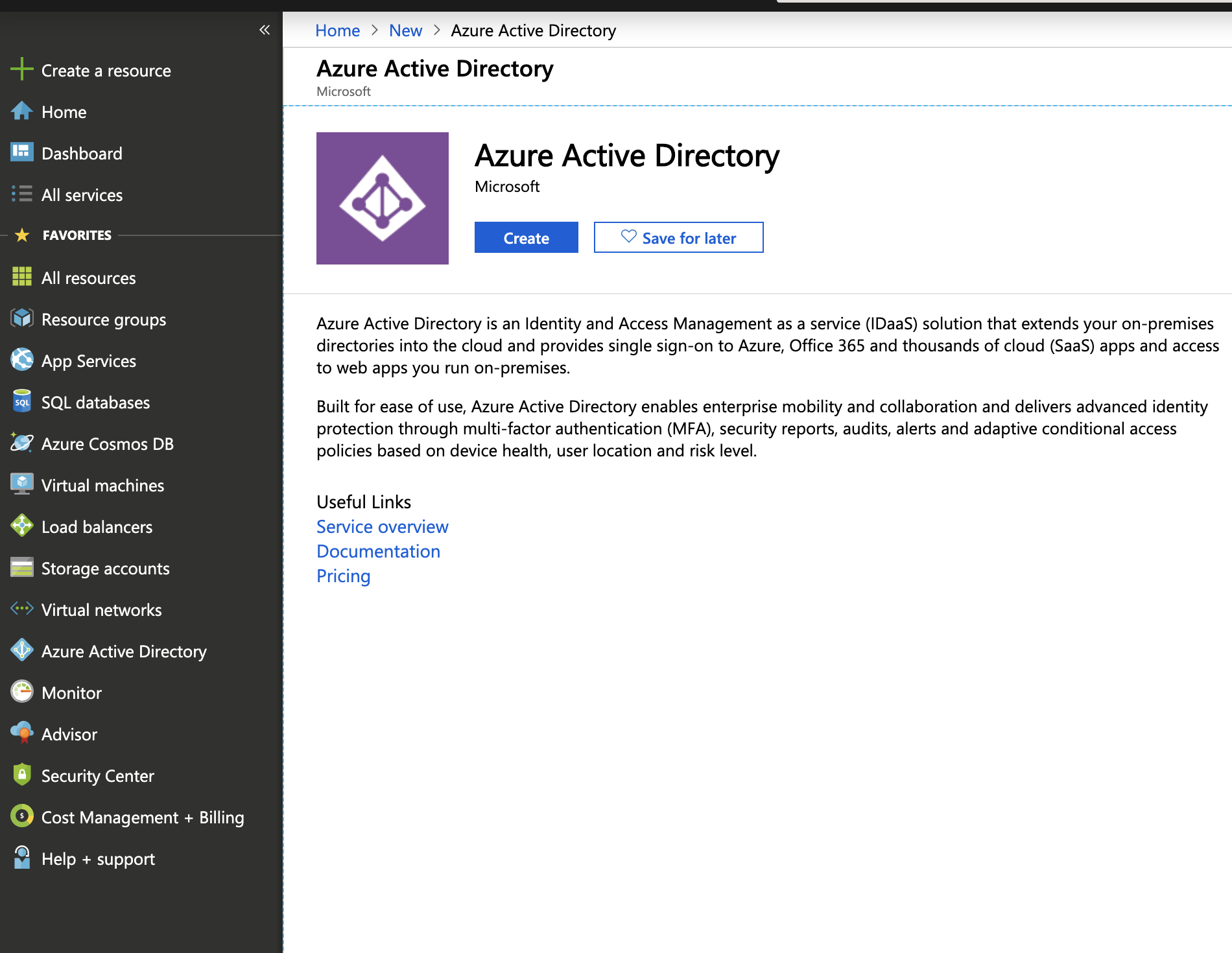

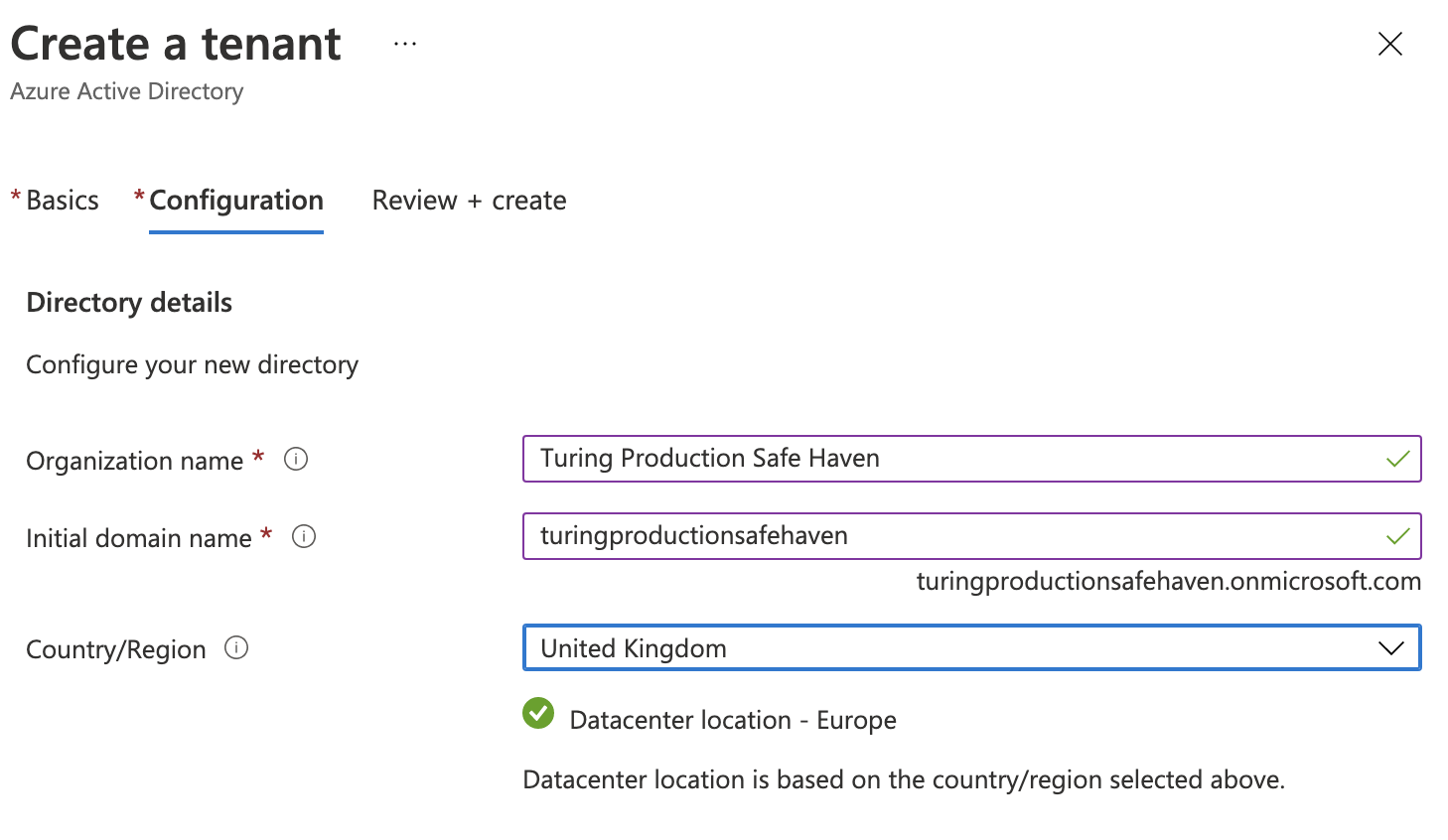

From the Azure portal, click Create a Resource and search for Azure Active Directory (AAD)

Screenshots
Click Create
Set the Organisation Name to the value of <name> in your core configuration file (e.g. Turing Production Safe Haven)
- Note: be careful not to confuse this with the <name> under <organisation> used in the config file
Set the Initial Domain Name to the Organisation Name all lower case with spaces removed (e.g. turingproductionsafehaven)
Set the Country or Region to whatever region is appropriate for your deployment (e.g. United Kingdom)

Screenshots
Click Create
Wait for the Azure Active Directory to be created

Get the Azure Active Directory Tenant ID#

From the Azure portal, navigate to the AAD you have created. You can do this by:
- Clicking the link displayed at the end of the initial AAD deployment.
- Clicking on your username and profile icon at the top left of the Azure portal, clicking Switch directory and selecting the AAD you have just created from the All Directories section of the Directory + Subscription panel that then displays.
If required, click the “hamburger” menu in the top left corner (three horizontal lines) and select Azure Active Directory

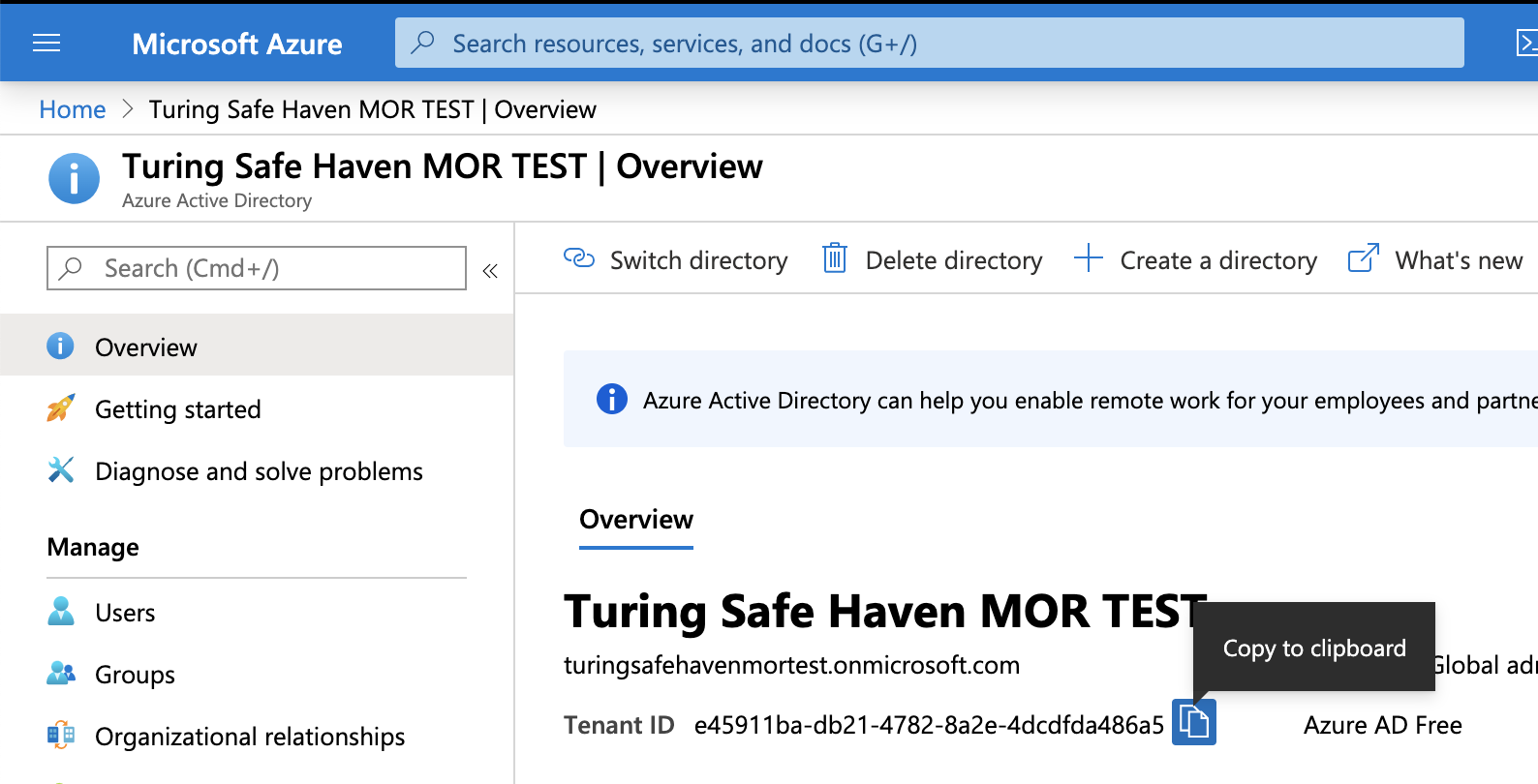

Click Overview in the left panel and copy the Tenant ID displayed under the AAD name and initial something.onmicrosoft.com domain.

Screenshots
Ensure that you add this to the configuration file for this SHM under azure > activeDirectoryTenantId.

4. 🚪 Register custom domain with Azure Active Directory#

Configure DNS for the custom domain#

at 📁 ./deployment/safe_haven_management_environment/setup

PS> ./Setup_SHM_DNS_Zone.ps1 -shmId <SHM ID>

where <SHM ID> is the management environment ID for this SHM

Error

If you see a message You need to add the following NS records to the parent DNS system for... you will need to add the NS records manually to the parent’s DNS system, as follows:

Manual DNS configuration instructions

To find the required values for the NS records on the portal, click All resources in the far left panel, search for DNS Zone and locate the DNS Zone with the SHM’s domain.
The NS record will list four Azure name servers which must be duplicated to the parent DNS system.

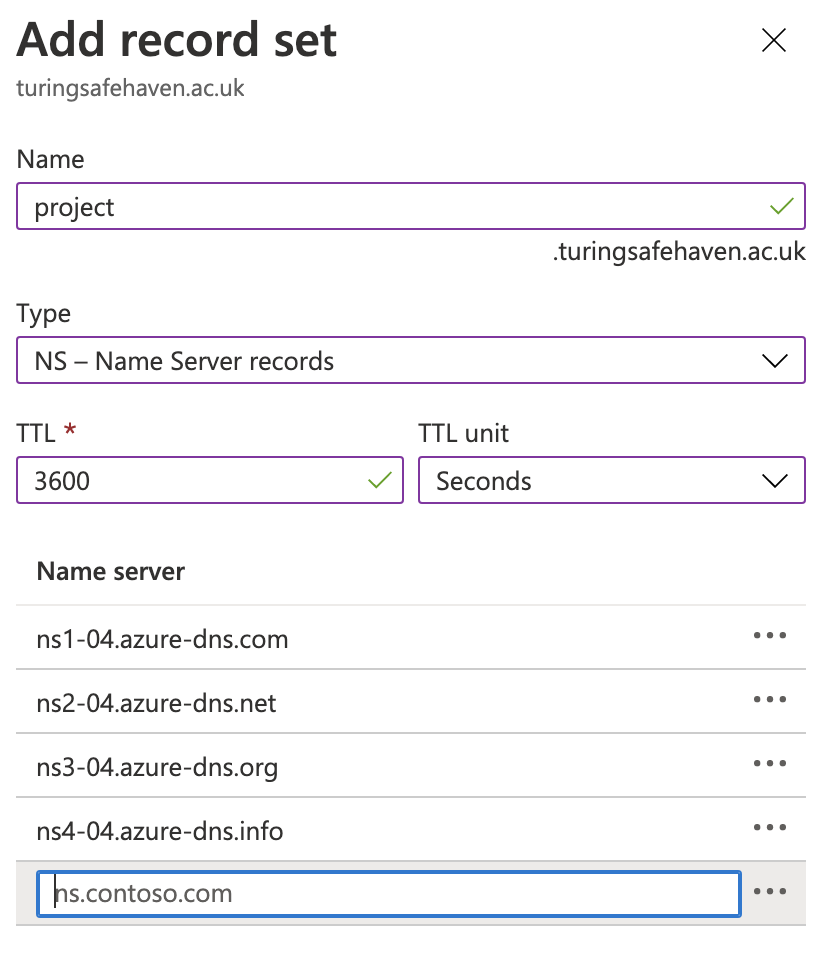

If the parent domain has an Azure DNS Zone, create an NS record set in this zone.
- The name should be set to the subdomain (e.g. project) or @ if using a custom domain, and the values duplicated from above
- For example, for a new subdomain project.turingsafehaven.ac.uk, duplicate the NS records from the Azure DNS Zone project.turingsafehaven.ac.uk to the Azure DNS Zone for turingsafehaven.ac.uk, by creating a record set with name project
If the parent domain is outside of Azure, create NS records in the registrar for the new domain with the same value as the NS records in the new Azure DNS Zone for the domain.

Add the SHM domain to the Azure Active Directory#

at 📁 ./deployment/safe_haven_management_environment/setup

PS> ./Setup_SHM_AAD_Domain.ps1 -shmId <SHM ID>

where <SHM ID> is the management environment ID for this SHM

Error

If you get an error like Could not load file or assembly 'Microsoft.IdentityModel.Clients.ActiveDirectory, Version=3.19.8.16603, Culture=neutral PublicKeyToken=31bf3856ad364e35'. Could not find or load a specific file. (0x80131621) then you may need to try again in a fresh Powershell terminal.

Error

Due to delays with DNS propagation, the script may occasionally exhaust the maximum number of retries without managing to verify the domain. If this occurs, run the script again. If it exhausts the number of retries a second time, wait an hour and try again.

5. 🔨 Create Azure Active Directory administrator accounts#

A default external administrator account was automatically created for the user you were logged in as when you initially created the Azure AD. This user should also not be used for administering the Azure AD.

Several later steps will require the use of a native administrator account with a valid mobile phone and email address. You must therefore create and activate a native administrator account for each person who will be acting as a system administrator. After doing so, you can delete the default external user - we strongly recommend that you do so.

Tip

In order to avoid being a single point of failure, we strongly recommend that you add other administrators in addition to yourself.

Caution

An emergency access admin account is created later in the deployment process. This should not be used except when absolute necessary. In particular, it should not be used as a shared admin account for routine administration of the Safe Haven.

Create a new account for each administrator (including yourself)#

From the Azure portal, navigate to the AAD you have created.

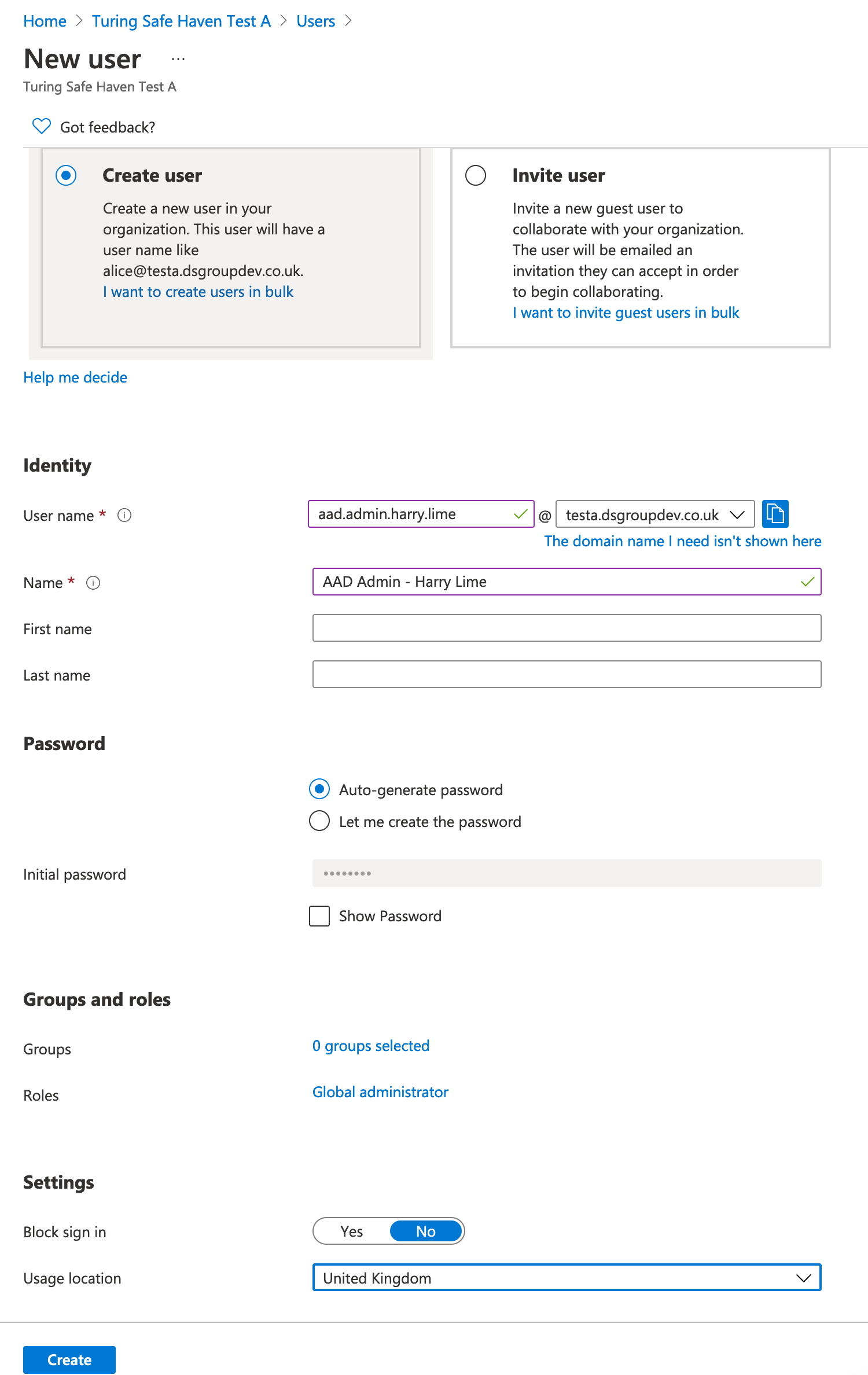

Click Users in the left hand sidebar and click on the +New user icon in the top menu above the list of users.

Create an internal admin user:#

User name: aad.admin.firstname.lastname@<SHM domain>
Name: AAD Admin - Firstname Lastname
Leave Auto-generate password set. Users will be able to reset their passwords on first login and it is good security practice for admins not to know user passwords.
Click the User link in the Roles field and make the user an administrator:
- Search for Global Administrator
- Check Global Administrator
- Click the Select button
Set their usage location to the country you used when creating the Safe Haven Azure AD
Leave all other fields empty, including First name and Last name
Click Create

Add authentication methods for self-service password reset#

Navigate to Users and click on the account you have just created.
Click on Properties and then edit the Contact info section.
- Add the the user’s mobile phone number to the Mobile phone field. Make sure to prefix it with the country code and do not include the leading zero (e.g. +44 7700900000).
- They will need to enter their number in exactly this format when performing a self-service password reset.
- Do not add anything in the Email field here as this will prevent you from using the same email address for a user account.
- Click the Save icon in top panel.
In the left-hand sidebar click Authentication methods.
- Enter the user’s mobile phone number in the Phone field, using the same format as above.
  - Note that you do not need to fill out the Alternate Phone field.
- Enter the user’s institutional email address in the Email field.
- Ensure that you have registered both a phone number and an email address.
- Click the Save icon in top panel.

Register allowed authentication methods#

When you have finished creating administrator accounts, you will need to ensure that they are able to set their own passwords

From the Azure portal, navigate to the AAD you have created.

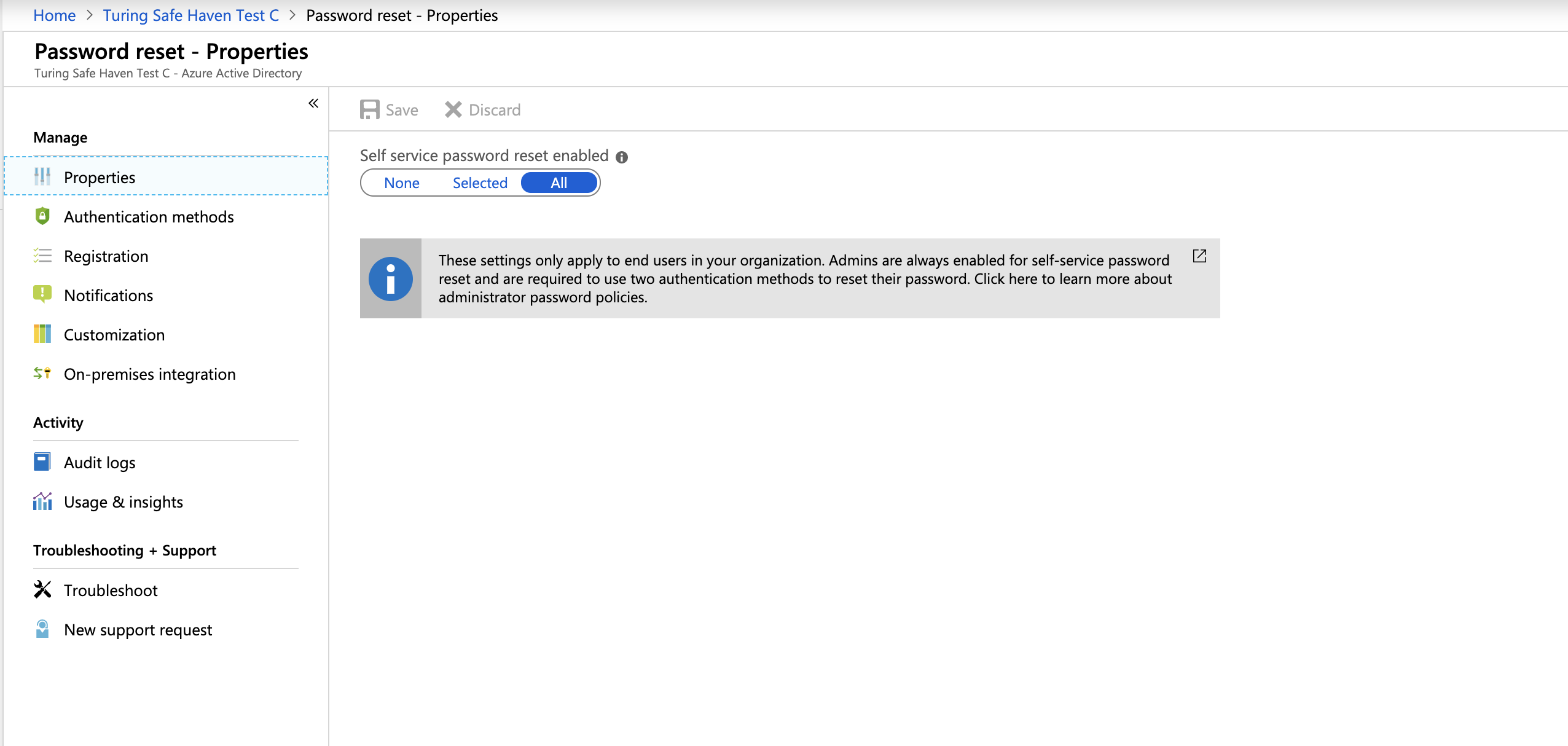

Click Manage > Password Reset on the left-hand sidebar

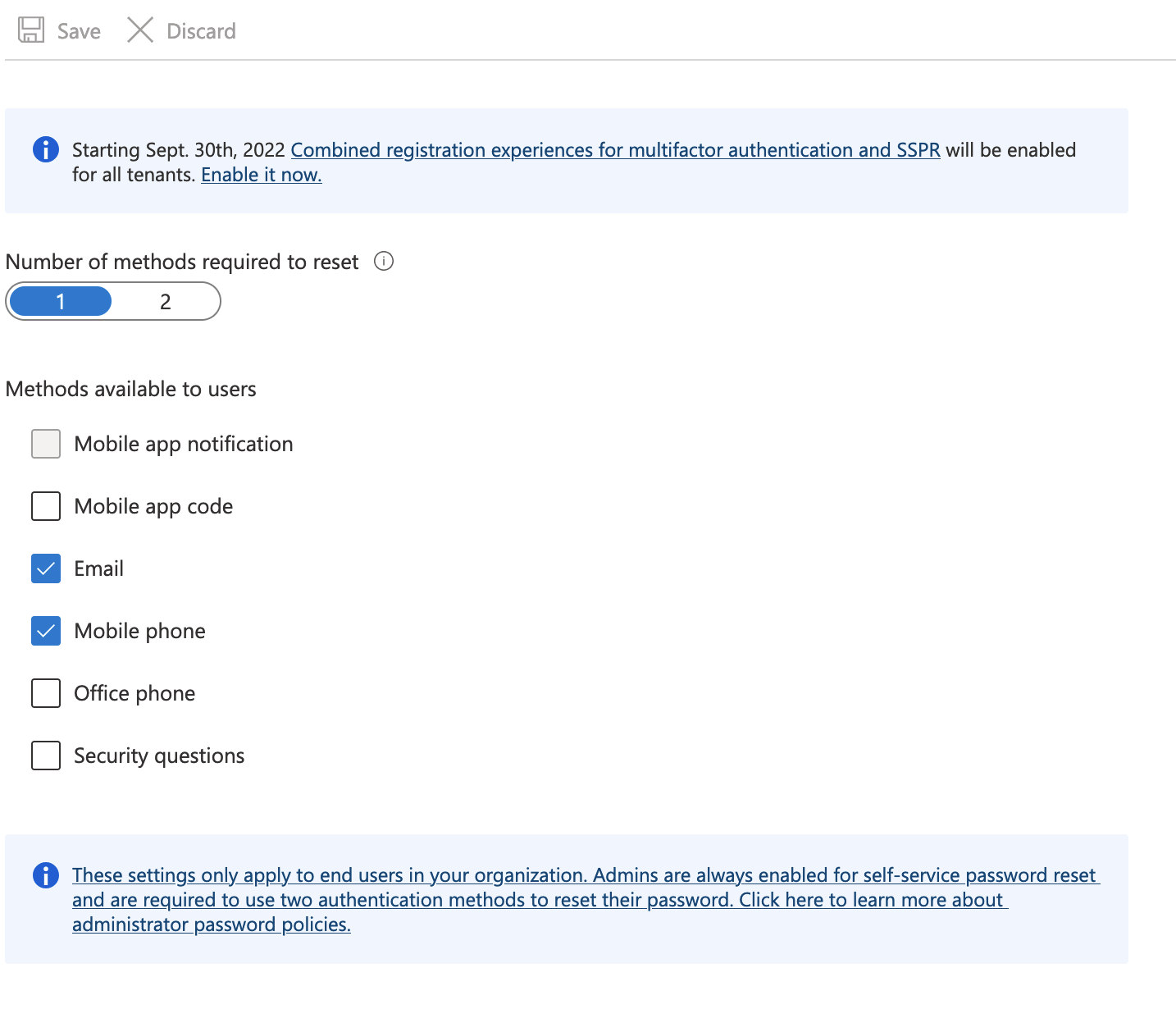

Click Manage > Authentication methods on the left-hand sidebar
Ensure that both Email and Mobile phone are enabled

Activate and configure your new internal admin account#

Warning

In the next step we will delete the external admin account created for the user account you used to create the Azure AD. Before you do this, you must configure and log into the native admin account you have just created for yourself.

The <username> for this account is aad.admin.firstname.lastname
The <username domain> for this account is the same as the <SHM domain>

The administrators you have just set up can activate their accounts by following the password and MFA steps in the user guide.

Remove the default external user that was used to create the Azure AD#

Warning

Make sure you have activated your account and successfully logged in with the new native administrator account you have just created for yourself (aad.admin.firstname.lastname@<SHM domain>) before deleting the default external administrator account.

Ensure you are logged in with the new native administrator account you have just created.
- Click on your username at the top right corner of the screen, then Sign in with a different user.
- Log in with the password you set for yourself when activating your admin account in the previous step
From the Azure portal, navigate to the AAD you have created.
Click Users in the left hand sidebar
Select the default external user that was created when you created the Azure AD.
- The User principal name field for this user will contain the external domain and will have #EXT# before the @ sign (for example alovelace_turing.ac.uk#EXT#@turingsafehaven.onmicrosoft.com)
Click the Delete user icon in the menu bar at the top of the user list panel

6. 💻 Deploy SHM#

at 📁 ./deployment/secure_research_environment/setup

PS> ./Deploy_SHM.ps1 -shmId <SHM ID>

where <SHM ID> is the management environment ID for this SHM
where <SRE ID> is the secure research environment ID for this SRE

You will be prompted for credentials for:

a user with admin rights over the Azure subscriptions you plan to deploy into
a user with Global Administrator privileges over the Azure Active Active directory you set up earlier

This will perform the following actions, which can be run individually if desired:

Deploy Key Vault for SHM secrets and create an emergency admin account

at 📁 ./deployment/safe_haven_management_environment/setup

PS> ./Setup_SHM_Key_Vault_And_Emergency_Admin.ps1 -shmId <SHM ID>

where <SHM ID> is the management environment ID for this SHM

Error

Some (rare) operations require you to be logged in as a native Global Administrator. To support these rare cases, and to allow access to the Safe Haven Azure AD in the case of loss of access to personal administrator accounts (e.g. lost access to MFA), an emergency access administrator account has been created by the above script.

Warning

Do not use this account unless absolutely required!

Deploy network and VPN gateway

at 📁 ./deployment/safe_haven_management_environment/setup

PS> ./Setup_SHM_Networking.ps1 -shmId <SHM ID>

where <SHM ID> is the management environment ID for this SHM

Sanity check

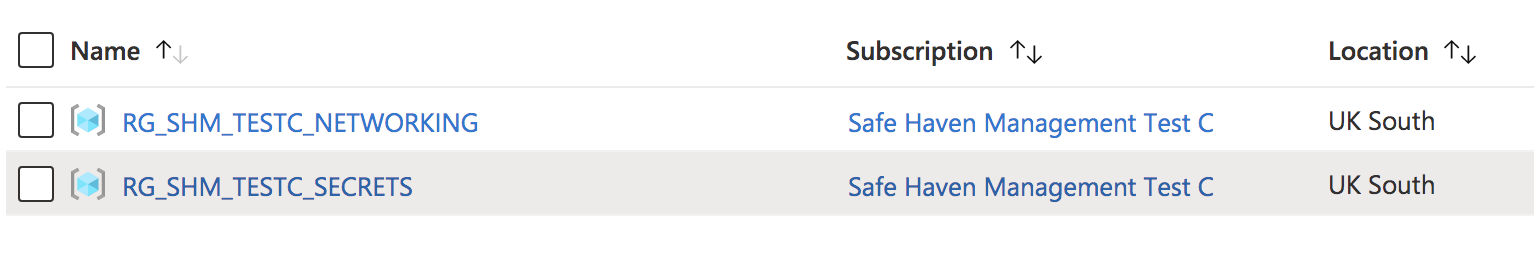

Once the script exits successfully you should see the following resource groups in the Azure Portal under the SHM subscription, with the appropriate <SHM ID> for your deployment e.g. RG_SHM_<SHM ID>_NETWORKING:

Error

If you cannot see these resource groups:

Ensure you are logged into the portal using the account that you are building the environment with.
Click on your username in the top right corner of the Azure portal screen and ensure that your SHM subscription (see shm_<SHM ID>_core_config.json) is one of the selections.
Click the “hamburger” menu in the top left corner (three horizontal lines) and select Resource groups.

Deploy monitoring

at 📁 ./deployment/safe_haven_management_environment/setup

PS> ./Setup_SHM_Monitoring.ps1 -shmId <SHM ID>

where <SHM ID> is the management environment ID for this SHM

Deploy firewall

at 📁 ./deployment/safe_haven_management_environment/setup

PS> ./Setup_SHM_Firewall.ps1 -shmId <SHM ID>

where <SHM ID> is the management environment ID for this SHM

Deploy domain controllers

at 📁 ./deployment/safe_haven_management_environment/setup

PS> ./Setup_SHM_DC.ps1 -shmId <SHM ID>

where <SHM ID> is the management environment ID for this SHM

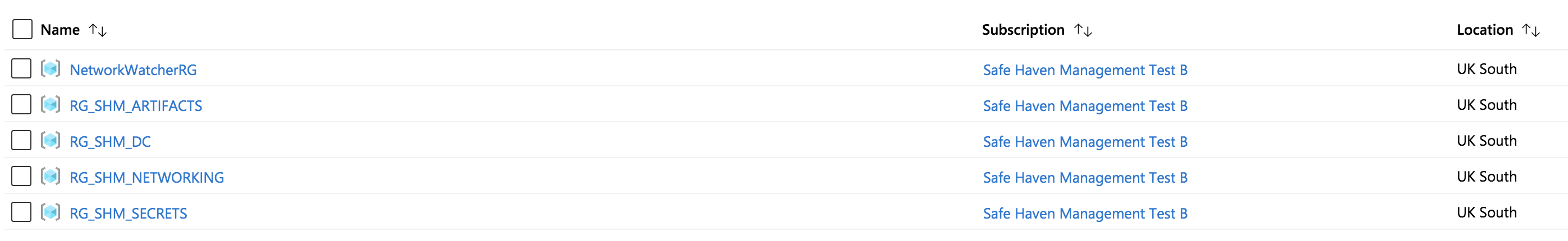

Sanity check

Error

If you cannot see these resource groups:

Ensure you are logged into the portal using the account that you are building the environment with.
Click on your username in the top right corner of the Azure portal screen and ensure that your SHM subscription (see shm_<SHM ID>_core_config.json) is one of the selections.
Click the “hamburger” menu in the top left corner (three horizontal lines) and select Resource groups.

Deploy update servers

at 📁 ./deployment/safe_haven_management_environment/setup

PS> ./Setup_SHM_Update_Servers.ps1 -shmId <SHM ID>

where <SHM ID> is the management environment ID for this SHM

Deploy network policy server

at 📁 ./deployment/safe_haven_management_environment/setup

PS> ./Setup_SHM_NPS.ps1 -shmId <SHM ID>

where <SHM ID> is the management environment ID for this SHM

Error

If you see an error similar to New-AzResourceGroupDeployment: Resource Microsoft.Compute/virtualMachines/extensions NPS-SHM-<SHM ID>/joindomain' failed with message you may find this error resolves if you wait and retry later. Alternatively, you can try deleting the extension from the NPS-SHM-<SHM ID> > Extensions blade in the Azure portal.

Deploy local package repositories

Two different types of local package repositories are available for Tier 2 and Tier 3 SREs:

Proxy (the repository makes on-demand connections to the external repository)
Mirror (the repository full replicates all requested packages from the external repository)

Hint

We recommend using Nexus proxies at both Tier 2 and Tier 3 to avoid the time taken to sync local mirrors.

We currently support the PyPI (Python) and CRAN (R) repositories.

at 📁 ./deployment/safe_haven_management_environment/setup

PS> ./Setup_SHM_Package_Repositories.ps1 -shmId <SHM ID>

where <SHM ID> is the management environment ID for this SHM

Danger

You should never attempt to manage the Nexus proxy through the web interface. Doing so from outside the Nexus subnet could expose the admin credentials.

Warning

Note that a full set of Tier 2 local mirrors currently take around two weeks to fully synchronise with the external package repositories as PyPI contains >10TB of packages.

7. 🚉 Configure VPN connection#

Download a client VPN certificate for the Safe Haven Management network#

Navigate to the SHM Key Vault via Resource Groups > RG_SHM_<SHM ID>_SECRETS > kv-shm-<SHM ID>
Once there open the Certificates page under the Settings section in the left hand sidebar.
Click on the certificate named shm-<SHM ID>-vpn-client-cert and select the CURRENT VERSION
Click the Download in PFX/PEM format link at the top of the page and save the *.pfx certificate file locally
To install, double click on the downloaded certificate (or on macOS you can manually drag it into the login keychain), leaving the password field blank.

Make sure to securely delete the local “*.pfx” certificate file that you downloaded after you have installed it.

Setup VPN connection to the Safe Haven Management network#

Navigate to the Safe Haven Management (SHM) virtual network gateway in the SHM subscription via Resource Groups > RG_SHM_<SHM ID>_NETWORKING > VNET_SHM_<SHM ID>_GW

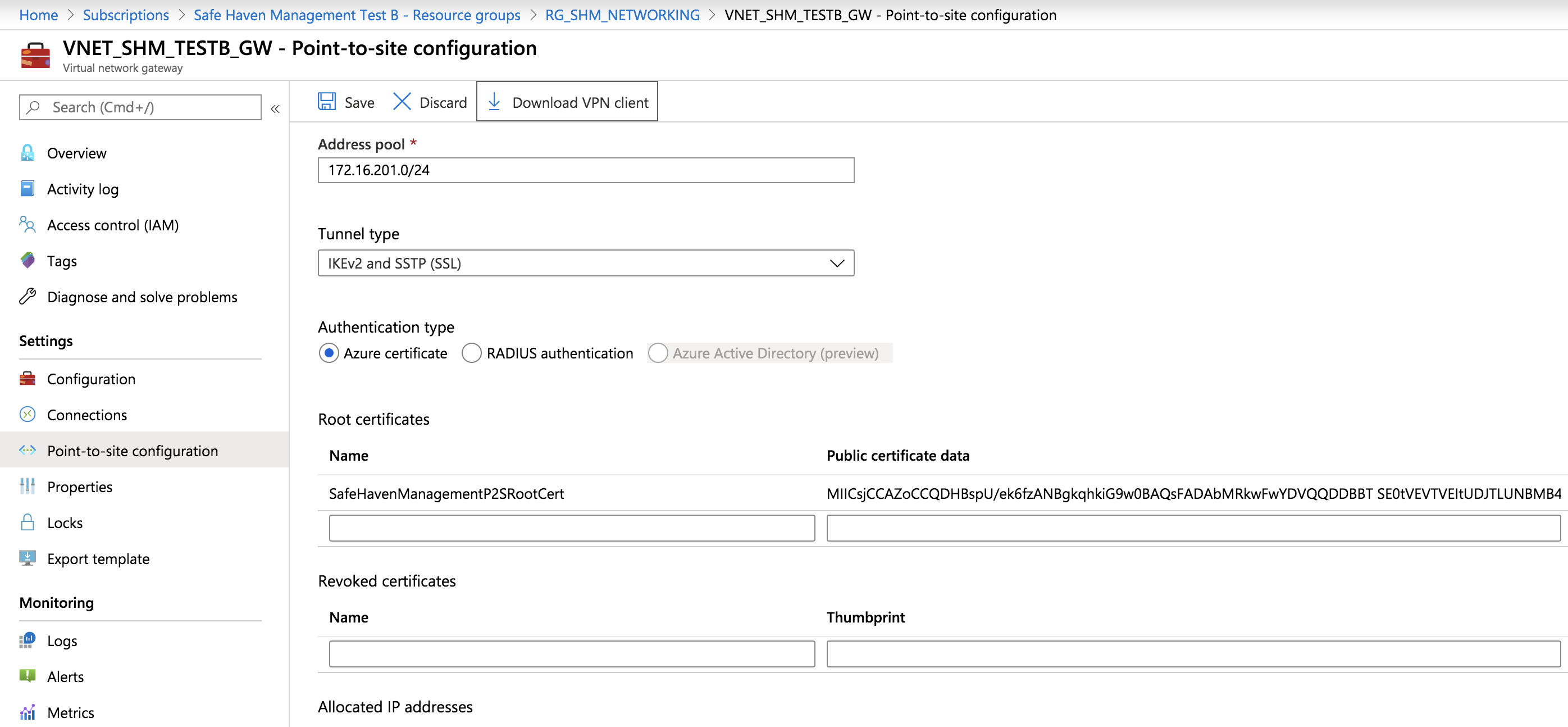

Once there open the Point-to-site configuration page under the Settings section in the left hand sidebar
Click the Download VPN client link at the top of the page to download a zip file

Screenshots
Unzip the zip file and identify the root certificate (Generic\VpnServerRoot.cer) and VPN configuration file (Generic\VpnSettings.xml)
Follow the VPN set up instructions using the section appropriate to your operating system (you do not need to install the Generic\VpnServerRoot.cer certificate, as we’re using our own self-signed root certificate):

instructions

Use SSTP for the VPN type
Name the VPN connection Safe Haven Management Gateway (<SHM ID>)
Do not rename the VPN client as this will break it

instructions

Start from step 3 of the macOS instructions.
Use IKEv2 for the VPN type

For users of macOS Catalina or later

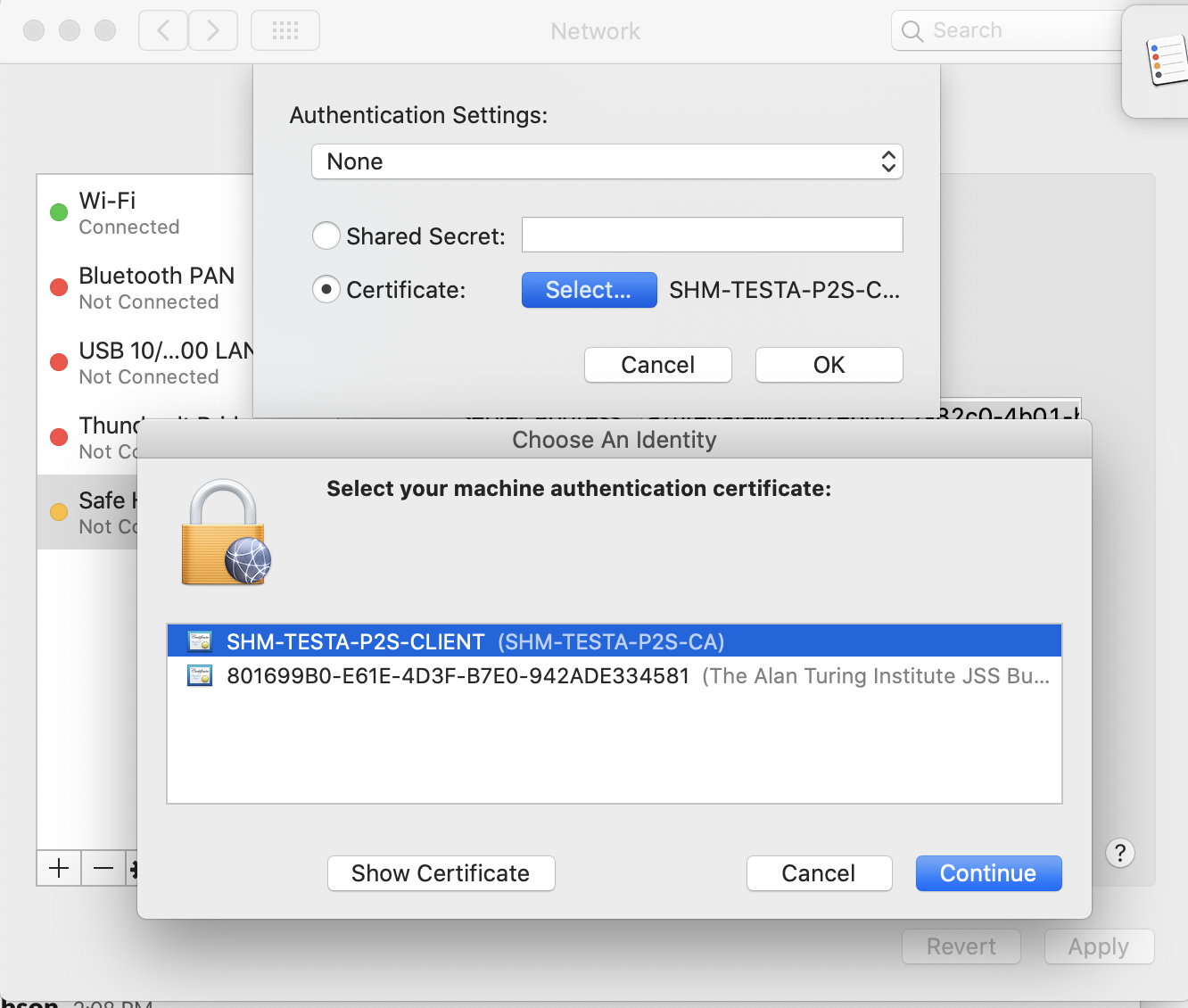

You must select None from the drop-down (not Certificate) and then select the Certificate radio button underneath as shown in the image below.
Name the VPN connection Safe Haven Management Gateway (<SHM ID>)
You can view the details of the downloaded certificate by highlighting the certificate file in Finder and pressing the spacebar.
You can then look for the certificate of the same name in the login KeyChain and view its details by double clicking the list entry.
If the details match the certificate has been successfully installed.

You should now be able to connect to the SHM virtual network via the VPN.

Important

Each time you need to access the virtual network ensure you are connected via the VPN.

Error

You may get a Windows protected your PC pop up. If so, click More info -> Run anyway.

Error

You may encounter a further warning along the lines of Windows cannot access the specified device, path, or file. This may mean that your antivirus is blocking the VPN client. You will need to configure your antivirus software to make an exception.

8. 🏡 Configure domain controllers#

Configure the first domain controller via Remote Desktop#

Navigate to the SHM primary domain controller VM in the portal at Resource Groups > RG_SHM_<SHM ID>_DC > DC1-SHM-<SHM ID> and note the Private IP address for this VM
Next, navigate to the RG_SHM_<SHM ID>_SECRETS resource group and then the kv-shm-<SHM ID> Key Vault and then select secrets on the left hand panel and retrieve the following:
- <admin username> is in the shm-<SHM ID>-domain-admin-username secret.
- <admin login> is the <admin username> followed by the SHM AD domain: <admin username>@<SHM domain>.
- <admin password> is in the shm-<SHM ID>-domain-admin-password secret.

Danger

These domain administrator credentials have complete control over creating and deleting users as well as assigning them to groups.
Do not use them except where specified and never write them down!
Be particularly careful never to use them to log in to any user-accessible VMs (such as the secure research desktops).

Install Azure Active Directory Connect#

Log into the SHM primary domain controller (DC1-SHM-<SHM ID>) VM using the private IP address, <admin login> and <admin password> that you obtained from the portal above.
Navigate to C:\Installation
Run the AzureADConnect Windows Installer Package
- On the Welcome to Azure AD Connect screen:
  - Tick the I agree to the license terms box
  - Click Continue
- On the Express Settings screen:
  - Click Customize
- On the Install required components screen:
  - Click Install
- On the User sign-in screen:
  - Ensure that Password Hash Synchronization is selected
  - Click Next
- On the Connect to Azure AD screen:
  - Provide credentials for the Azure Active Directory global administrator account you set up earlier (aad.admin.<first name>.<last name>@<SHM domain>) when prompted
  - If you receive a pop-up prompt, provide the same credentials when prompted
  - Back on the Connect to Azure AD screen, click Next
  - Approve the login with MFA if required
- On the Connect your directories screen:
  - Ensure that correct forest (your custom domain name; e.g turingsafehaven.ac.uk) is selected and click Add Directory
  - On the AD forest account pop-up:
    - Select Use existing AD account
    - Enter the details for the localadsync user.
      - Username: use the value of the shm-<SHM ID>-aad-localsync-username secret in the SHM key vault:

        EITHER prepended with <Domain ID>\, where the Domain ID is the capitalised form of the <SHM ID>, so if the SHM ID is project and the username is projectlocaladsync then you would use PROJECT\projectlocaladsync here.

        OR suffixed with <SHM domain>, so if the SHM domain is project.turingsafehaven.ac.uk and the username is projectlocaladsync then you would use projectlocaladsync@project.turingsafehaven.ac.uk here.
      - Password: use the shm-<SHM ID>-aad-localsync-password secret in the SHM key vault.
    - Click OK
  - Click Next
- On the Azure AD sign-in configuration screen:
  - Verify that the User Principal Name is set to userPrincipalName
  - Click Next
- On the Domain and OU filtering screen:
  - Select Sync Selected domains and OUs
  - Expand the domain and deselect all objects
  - Select Safe Haven Research Users and Safe Haven Security Groups
  - Click Next
- On the Uniquely identifying your users screen:
  - Click Next
- On the Filter users and devices screen:
  - Select Synchronize all users and devices
  - Click Next
- On the Optional features screen:
  - Select Password Writeback
  - Click Next
- On the Ready to configure screen:
  - Ensure that the Start the synchronisation process when configuration completes option is ticked.
  - Click Install
  - This may take a few minutes to complete
- On the Configuration complete screen:
  - Click Exit

Note

Take care to consider any differences in the keyboard of your machine and the Windows remote desktop when entering any usernames or passwords.

Error

If you receive an Internet Explorer pop-up dialog Content within this application coming from the website below is being blocked by Internet Explorer Advanced Security Configuration for Microsoft domains such as https://login.microsoft.com or https://aadcdn.msftauth.net then you can safely add these as exceptions:

Click Add
Click Close

Error

If you receive an error message on the login webpage pop-ups saying We can't sign you in. Javascript is required to sign you in.... followed by the Script Error: Do you want to continue running scripts on this page you can safely allow Javascript:

Click Yes
Close the dialog by clicking X

Error

If you see a Windows Security Warning, related to the MFA login:

Check Don't show this message again
Click Yes to close the dialog.

Error

If you get an error that the username/password is incorrect or that the domain/directory could not be found when entering the details for the localadsync user, try resetting the password for this user in the Domain Controller Active Directory so that it matches the value stored in the Key Vault

In Server Manager click Tools > Active Directory Users and Computers
Expand the domain in the left hand panel
Expand the Safe Haven Service Accounts OU
Right click on the <SHM ID> Local AD Sync Administrator user and select reset password
Set the password to the value from the appropriate Key Vault secret.
Leave the other settings alone and click OK

Error

If you have recently torn down another SHM linked to the same Azure Active Directory you might see the error Directory synchronization is currently in a pending disabled state for this directory. Please wait until directory synchronization has been fully disabled before trying again. You need to wait for the Azure Active Directory to fully disconnect - this can take up to 72 hours but is typically sooner. You do not need to close the installer window while waiting. If you need to, you can disconnect from the DC and VPN and reconnect later before clicking Retry.

Error

If you get an error that the connection to Azure Active Directory could not be made, please check that you do not have any Conditional Access policies enabled on the Azure Active Directory that require MFA for the synchronisation account.

Update Azure Active Directory Connect rules#

This step allows the locale (country code) to be pushed from the local AD to the Azure Active Directory.

Log into the SHM primary domain controller (DC1-SHM-<SHM ID>) VM using the private IP address, <admin login> and <admin password> that you obtained from the portal above.
Run the following command on the remote domain controller VM to update the AAD rules

PS> C:\Installation\UpdateAADSyncRule.ps1

Validate Active Directory synchronisation#

This step validates that your local Active Directory users are correctly synchronised to Azure Active Directory. Note that you can use the same script after deploying an SRE to add users in bulk.

Log into the SHM primary domain controller (DC1-SHM-<SHM ID>) VM using the private IP address, <admin login> and <admin password> that you obtained from the portal above.
Add your details to create researcher accounts for yourself and any other deployers.

Make a new copy of the user details template file from C:\Installation\user_details_template.csv

Tip

We suggest naming this YYYYDDMM-HHMM_user_details.csv but this is up to you
Remove the example user and add the required details for each user
- SamAccountName: Log in username without the @<SRE domain> part.

  Tip

  We recommend using firstname.lastname format.

  Warning

  Ensure that SamAccountName has a maximum of 20 characters from the 7-bit ASCII set (unaccented letters, numbers and some punctuation) or synchronisation will fail.
- GivenName: User’s first / given name

  Warning

  Ensure that GivenName uses only characters from the 7-bit ASCII set (unaccented letters, numbers and some punctuation) or synchronisation will fail.
- Surname: User’s last name / surname

  Warning

  Ensure that Surname uses only characters from the 7-bit ASCII set (unaccented letters, numbers and some punctuation) or synchronisation will fail.
- Mobile: Phone number to use for initial password reset.
  Important
  - This must include country code in the format +<country-code> <local number> (e.g. +44 7123456789).
  - Include a space between the country code and local number parts but no other spaces.
  - Remove the leading 0 from local number if present.
  - This can be a landline or or mobile but must be accessible to the user when resetting their password and setting up MFA.
  - Users can add the authenticator app and/or additional phone numbers during MFA self-registration.
- SecondaryEmail: An existing organisational email address for the user.

  Note

  This is not uploaded to their Data Safe Haven user account but is needed when sending account activation messages.
- GroupName: [Optional] The name of the Active Directory security group(s) that the users should be added to (eg. SG SANDBOX Research Users ).

  Tip

  If the user needs to be added to multiple groups, separate them with a pipe-character ( | ).

Run the following command on the remote domain controller VM to create and synchronise the users

PS> C:\Installation\CreateUsers.ps1 <path_to_user_details_file>

This script will add the users and trigger a sync with Azure Active Directory
Wait a few minutes for the changes to propagate

Click Users > All users and confirm that the new user is shown in the user list.
The new user account should have the On-premises sync enabled field set to Yes

Error

If you get the message New-ADUser: The specified account already exists you should first check to see whether that user actually does already exist! Once you’re certain that you’re adding a new user, make sure that the following fields are unique across all users in the Active Directory.

SamAccountName: Specified explicitly in the CSV file.
- If this is already in use, consider something like firstname.middle.initials.lastname
DistinguishedName: Formed of CN=<DisplayName>,<OUPath> by Active directory on user creation.
- If this is in use, consider changing DisplayName from <GivenName> <Surname> to <GivenName> <Middle> <Initials> <Surname>.

Configure AAD side of AD connect#

From the Azure portal, navigate to the AAD you have created.
Select Password reset from the left hand menu
Select On-premises integration from the left hand side bar

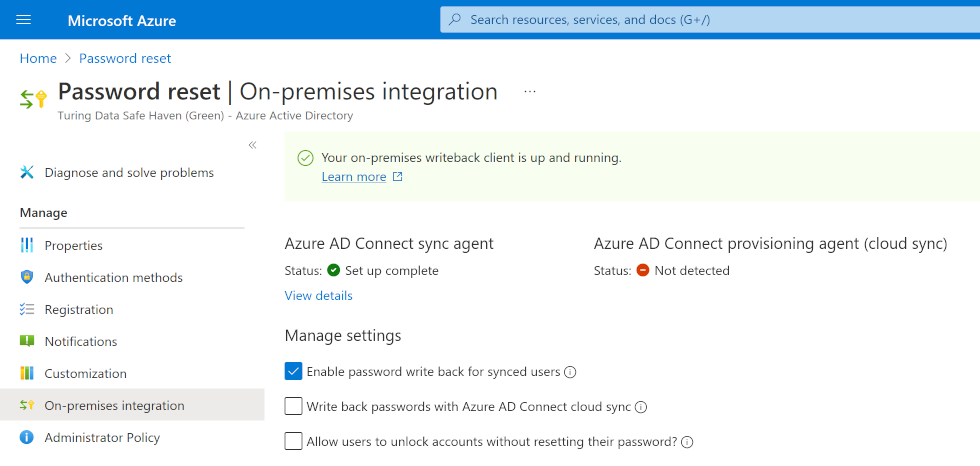

- Ensure Enable password writeback for synced users is ticked.
- If you changed this setting, click the Save icon

9. 📱 Enable MFA and self-service password reset#

To enable self-service password reset (SSPR) and MFA-via-phone-call, you must have sufficient licences for all users.

Add licences that support self-service password reset#

Click the heading that applies to you to expand the instructions for that scenario.

Test deployments

For testing you can enable a free trial of the P2 License (NB. it can take a while for these to appear on your AAD). You can activate the trial while logged in as your deafult guest administrator account.

From the Azure portal, navigate to the AAD you have created.
Click on Licences in the left hand sidebar
Click on All products in the left hand sidebar
Click on the +Try/Buy text above the empty product list and add a suitable licence product.
- Expand the Free trial arrow under Azure AD Premium P2
- Click the Activate button
- Wait for the Azure Active Directory Premium P2 licence to appear on the list of All Products (this could take several minutes)

Production deployments

For production you should buy P1 licences. This requires you to be logged in with an native Global Administrator account. As activating self-service password reset requires active MFA licences, this is one of the rare occasions you will need to use the emergency access admin account.

Switch to the the emergency administrator account:
- Click on your username at the top right corner of the screen, then click “Sign in with a different account”
- Enter aad.admin.emergency.access@<SHM domain> as the username
- Open a new browser tab and go to the Azure Portal
- Change to the Azure Active Directory associated with the Safe Haven SHM subscription (e.g. an existing corporate Azure AD). Do this by clicking on your username at the top right corner of the screen, then Switch directory, then selecting the directory you wish to switch to.
- Click the “hamburger” menu in the top left corner (three horizontal lines) and select Subscriptions
- Click on the Safe Haven SHM subscription
- Click on Resource Groups in the left hand sidebar then RG_SHM_<SHM ID>_SECRETS
- Click on the kv-shm-<shm id> Key Vault
- Click on Secrets in the left hand sidebar
- Click on the shm-<shm id>-aad-emergency-admin-password secret
- Click on the entry in the Current version section
- Click on the clipboard icon next to the Secret value field
- The emergency admin account password in now in your clipboard
- Switch back to the browser tab with the Azure login page
- Paste the password you copied from the Key Vault
- Click the Sign in button
Click the Purchase services link in the information panel above the trial options.
In the “Microsoft 365 Admin Centre” portal that opens:
- Expand the Billing section of the left hand side bar
- Click on Purchase services
- Scroll down the list of products and select Azure Active Directory Premium P1 and click Buy
- Select Pay monthly
- Enter the number of licences required.
- Leave automatically assign all of your users with no licences checked
- Click Check out now
- Enter the address of the organisation running the Safe Haven on the next screen
- Click next and enter payment details when requested
Switch back to your original administrator account
- Click on your username at the top right corner of the screen, then click “Sign in with a different account”
- Log in as the user you used to create the Safe Haven Azure AD

Enable self-service password reset#

Ensure your Azure Portal session is using the new Safe Haven Management (SHM) AAD directory. The name of the current directory is under your username in the top right corner of the Azure portal screen. To change directories click on your username at the top right corner of the screen, then Switch directory, then the name of the new SHM directory.
Click the “hamburger” menu in the top left corner (three horizontal lines) and select Azure Active Directory
Click Password reset in the left hand sidebar
Set the Self service password reset enabled toggle to All
Click the Save icon

Error

If you see a message about buying licences, you may need to refresh the page for the password reset option to show.

Configure MFA on Azure Active Directory#

From the Azure portal, navigate to the AAD you have created.
Click Users in the left hand sidebar
Click the Per-user MFA icon in the top bar of the users list.
Click on Service settings at the top of the panel

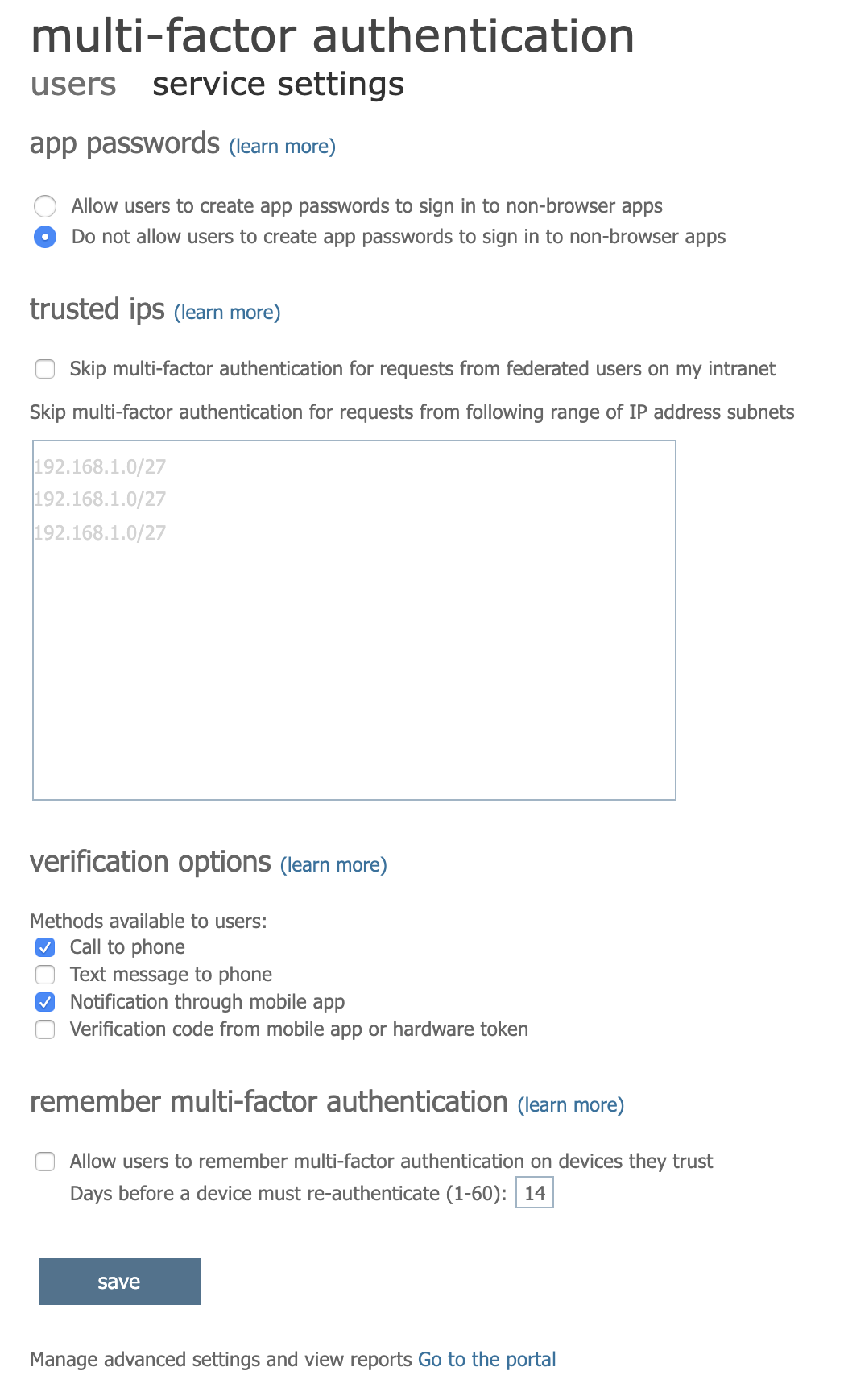

Configure MFA as follows:
- In the App passwords section select Do not allow users to create app passwords to sign in to non-browser apps
- Ensure the Verification options are set as follows:
  - check Call to phone and Notification through mobile app (Call to phone is not available with a trial P2 licence)
  - uncheck Text message to phone and Verification code from mobile app or hardware token
- In Remember multi-factor authentication section
  - ensure Allow users to remember multi-factor authentication on devices they trust is unchecked
- Click “Save” and close window

  Screenshots

10. 🚉 Configure network policy server#

Configure the network policy server (NPS) via Remote Desktop#

Navigate to the network policy server VM in the portal at Resource Groups > RG_SHM_<SHM ID>_NPS > NPS-SHM-<SHM ID> and note the Private IP address for this VM
Use the same <admin login> and <admin password> as for the SHM primary domain controller (DC1-SHM-<SHM ID>)

Configure NPS logging#

Log into the network policy server (NPS-SHM-<SHM ID>) VM using the private IP address, <admin login> and <admin password> that you obtained from the portal above.
Open Server Manager and select Tools > Network Policy Server (or open the Network Policy Server desktop app directly)
Configure NPS to log to a local text file:

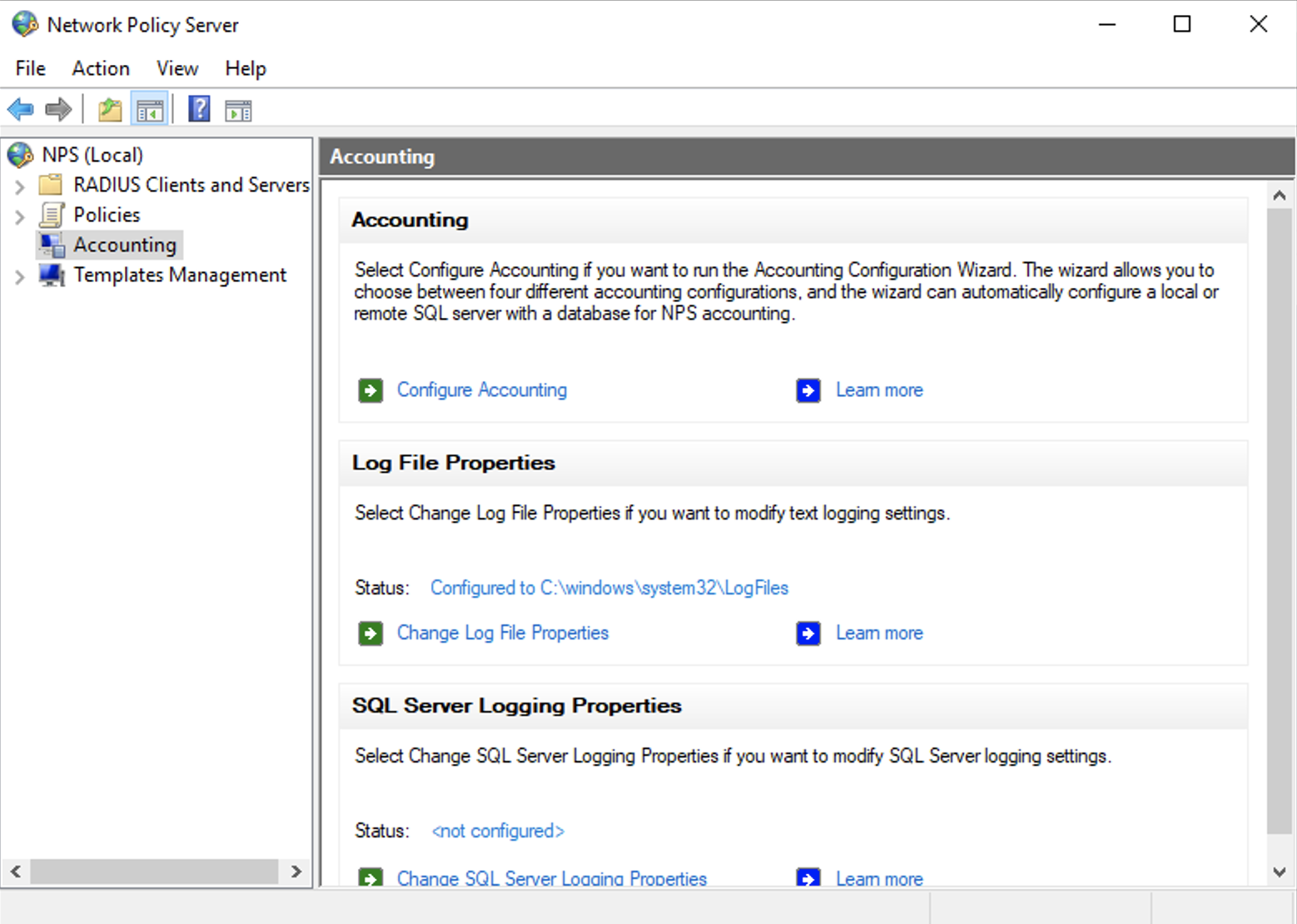

- Select NPS (Local) > Accounting on the left-hand sidebar

  Screenshots
- Click on Accounting > Configure Accounting
  - On the Introduction screen, click Next.
  - On the Select Accounting Options screen, select Log to text file on the local computer then click Next.
  - On the Configure Local File Logging screen, click Next.
  - On the Summary screen, click Next.
  - On the Conclusion screen, click Close.
- Click on Log file properties > Change log file properties
  - On the Log file tab, select Daily under Create a new log file
  - Click Ok

Configure MFA#

Log into the network policy server (NPS-SHM-<SHM ID>) VM using the private IP address, <admin login> and <admin password> that you obtained from the portal above.
Run the following command on the remote network policy server VM to configure MFA
On the webpage pop-up, provide credentials for your native Global Administrator for the SHM Azure AD

& "C:\Program Files\Microsoft\AzureMfa\Config\AzureMfaNpsExtnConfigSetup.ps1"

Enter A if prompted to install Powershell modules
On the webpage pop-up, provide credentials for your native Global Administrator for the SHM Azure AD
Back on the Connect to Azure AD screen, click Next
Approve the login with MFA if required
When prompted to Provide your Tenant ID, enter the Tenant ID that you obtained from Azure Active Directory earlier
At the message Configuration complete. Press Enter to continue, press Enter

Note

Take care to consider any differences in the keyboard of your machine and the Windows remote desktop when entering the password.

Error

If you receive an error box We can't sign you in. Javascript is required to sign you in. Do you want to continue running scripts on this page

Click Yes
Close the dialog by clicking X

Error

If you get a Javascript error that prevents the script from running then simply run this script again.

Error

If you receive an Internet Explorer pop-up dialog like Content within this application coming from the website below is being blocked by Internet Explorer Advanced Security Configuration

Add these webpages to the exceptions allowlist by clicking Add and clicking Close

Error

If you see a Windows Security Warning when connecting to Azure AD, check Don't show this message again and click Yes.

Error

If you see an error New-MsolServicePrincipalCredential : Service principal was not found, this indicates that the Azure Multi-Factor Auth Client is not enabled in Azure Active Directory.

Enabling Multi-Factor Auth Client

Look at the documentation here.
Make sure the Safe Haven Azure Active Directory has valid P1 licenses:
- Go to the Azure Portal and click Azure Active Directories in the left hand side bar
- Click Licensesin the left hand side bar then Manage > All products
- You should see Azure Active Directory Premium P1 in the list of products, with a non-zero number of available licenses.
- If you do not have P1 licences, purchase some following the instructions at the end of the add additional administrators section above, making sure to also follow the final step to configure the MFA settings on the Azure Active Directory.
- If you are using the trial Azure Active Directory Premium P2 licences, you may find that enabling a trial of Enterprise Mobility + Security E5 licences will resolve this.
Make sure that you have added a P1 licence to at least one user in the Azure Active Directory and have gone through the MFA setup procedure for that user. You may have to wait a few minutes after doing this
If you’ve done all of these things and nothing is working, you may have accidentally removed the Azure Multi-Factor Auth Client Enterprise Application from your Azure Active Directory. Run C:\Installation\Ensure_MFA_SP_AAD.ps1 to create a new service principal and try the previous steps again.

Error

If you get a New-MsolServicePrincipalCredential: Access denied error stating You do not have permissions to call this cmdlet please try the following:

Check user credentials

Make sure you are logged in to the NPS server as a domain user rather than a local user.
- The output of the whoami command in Powershell should be <SHM netBios domain>\<SHM admin> rather than NPS-SHM-<SHM ID>\<SHM admin>.
- If it is not, reconnect to the remote desktop with the username admin@<SHM domain>, using the same password as before
Make sure you authenticate to Azure Active Directory your own native Global Administrator (i.e. admin.firstname.lastname@<SHM domain>) and that you have successfully logged in and verified your phone number and email address and configured MFA on your account.

11. 🔐 Apply conditional access policies#

Require MFA for all users#

Warning

Before completing this step, make sure you have confirmed you are able to successfully log in as the emergency access admin, as this account will be the only one excluded from the MFA requirement.

From the Azure portal, navigate to the AAD you have created.
Click Properties in the left hand sidebar and disable security defaults as shown in the screenshot here
- Select NO from Enable Security defaults
- Select My organization is using Conditional Access and hit the Save button
Click Security in the left hand sidebar
Click Conditional access in the left hand sidebar
Click the +New Policy icon in the top bar above the (empty) policy list
Create a new policy as follows:
- Set the name to Require MFA
- Under Users or workload identities set the Users and groups condition to:
  - Include: Select All users
  - Exclude:
    - Check Users and groups
    - Select the Admin - EMERGENCY ACCESS user
    - Select all On-Premises Directory Synchronization Service Account users
    - Click Select
- Under Cloud apps or actions select Cloud apps in the drop-down menu and set:
  - Include: Select All cloud apps
  - Exclude: Leave unchanged as None
- Leave the Conditions condition unchanged (all showing as Not configured)
- Set the Grant condition to:
  - Check Grant access
  - Check Require multi-factor authentication
  - Click Select
- Leave the Session condition unchanged
- Under Enable policy select On
- Check I understand that my account will be impacted by this policy. Proceed anyway.
- Click the Create button

Block portal access for normal users#

Most users have no reason to access the Azure portal using the SHM tenant. Therefore we will block access for all users other than Global Administrators.

From the Azure portal, navigate to the AAD you have created.
Click Security in the left hand sidebar
Click Conditional Access in the left hand sidebar
Click on New Policy at the top of the panel
Configure the policy as follows
- In the Name field enter Restrict Azure Active Directory access
- Under Users or workload identities set the Users and groups condition to:
  - Include: Select All users
  - Exclude:
    - Check Directory roles
    - In the drop-down menu select Global administrator. This will ensure that only the administrator accounts you created in the previous section are able to access the portal.
- Under Cloud apps or actions select Cloud apps in the drop-down menu and set:
  - Include:
    - Select Select apps
    - In the pop-up menu on the right, select
      - Microsoft Azure Management and
      - Microsoft Graph PowerShell then
    - Click Select
  - Exclude: Leave unchanged as None
- Leave the Conditions condition unchanged (all showing as Not configured)
- Under the Access controls and Grant Headings click 0 controls selected
  - In the pop-up menu on the right select the Block Access radio button and click Select
- Under Enable policy select On
- Click the Create button

Error

Security defaults must be disabled in order to create this policy. This should have been done when creating a policy to require MFA for all users.

12. 🚷 Add MFA licences to any non-admin users#

Administrator accounts can use MFA and reset their passwords without a licence needing to be assigned. However, when you create non-admin users they will need to be assigned an Azure Active Directory licence in order to reset their own password.

Assigning MFA licences#

Ensure you are logged in to the Azure Portal in with the native administrator account you created.
Ensure your session is using the new Safe Haven Management (SHM) AAD directory. The name of the current directory is under your username in the top right corner of the Azure portal screen. To change directories click on your username at the top right corner of the screen, then Switch directory, then the name of the new SHM directory.
Click the “hamburger” menu in the top left corner (three horizontal lines) and select Azure Active Directory
Click Licences in the left hand sidebar
Click All products in the left hand sidebar
Click the relevant licence product [Azure Active Directory Premium P1 (production) or Azure Active Directory Premium P2 (test)]
Click Licensed users in the left hand sidebar
Click the +Assign icon in the top bar above the list of user licence assignments
Click + Add users and groups under Users and groups
Click on the users you want to assign licences to
Click Select
Click Review + Assign
Click Assign

Testing password self-reset#

Add a licence to the user you want to test with
Go to https://aka.ms/mfasetup in an incognito / private browsing tab
Enter the researcher username
Click the Forgotten my password link
Enter the captcha text and press next
Enter your mobile phone number, making sure to prefix it with the country code and to not include the leading zero (+<country-code> <phone-number-without-leading-zero> e.g. +44 7700900000).
Enter the code that was texted to your phone
Enter a new password
Click the Sign in with new password link on the following page, or go to https://aka.ms/mfasetup again
Enter the username and the new password
Click Next at the Help us to protect your account prompt
Follow the instructions to configure Microsoft Authenticator
