Managing Data Safe Haven users

Important

This document assumes that you already have access to a Safe Haven Management (SHM) environment and one or more Secure Research Environments (SREs) that are linked to it.

🔰 Create new users

Users should be created on the main domain controller (DC1) in the SHM and synchronised to Azure Active Directory. A helper script for doing this is already uploaded to the domain controller - you will need to prepare a CSV file in the appropriate format for it.

🔒 SRE Security Groups

Each user should be assigned to one or more Active Directory “security groups”, which give them access to a given SRE with appropriate privileges. The security groups are named like so:

• SG <SRE ID> Research Users: Default for most researchers. No special permissions.

• SG <SRE ID> Data Administrators: Researchers who can create/modify/delete database tables schemas. Given to a smaller number of researchers. Restricting this access to most users prevents them creating/deleting arbitrary schemas, which is important because some SREs have their input data in database form.

📜 Generate user details CSV file

🚗 Using data classification app

• Follow the instructions in the classification app documentation to create users

  • Users can be created in bulk by selecting Create User > Import user list and uploading a spreadsheet of user details

  • Users can also be created individually by selecting Create User > Create Single User

• After creating users, export the UserCreate.csv file

  • To export all users, select Users > Export UserCreate.csv

  • To export only users for a particular project, select Projects > (Project Name) > Export UserCreate.csv

• Upload the user details CSV file to a sensible location on the SHM domain controller

  Note

  We suggest using C:\Installation\YYYYDDMM-HHMM_user_details.csv but this is up to you

✋ Manually edit CSV

On the SHM domain controller (DC1).

• Make a new copy of the user details template file from C:\Installation\user_details_template.csv

  Tip

  We suggest naming this YYYYDDMM-HHMM_user_details.csv but this is up to you

• Remove the example user and add the required details for each user

  • SamAccountName: Log in username without the @<SRE domain> part.

    Tip

    We recommend using firstname.lastname format.

    Warning

    Ensure that SamAccountName has a maximum of 20 characters from the 7-bit ASCII set (unaccented letters, numbers and some punctuation) or synchronisation will fail.

  • GivenName: User’s first / given name

    Warning

    Ensure that GivenName uses only characters from the 7-bit ASCII set (unaccented letters, numbers and some punctuation) or synchronisation will fail.

  • Surname: User’s last name / surname

    Warning

    Ensure that Surname uses only characters from the 7-bit ASCII set (unaccented letters, numbers and some punctuation) or synchronisation will fail.

  • Mobile: Phone number to use for initial password reset.

    Important

    • This must include country code in the format +<country-code> <local number> (e.g. +44 7123456789).

    • Include a space between the country code and local number parts but no other spaces.

    • Remove the leading 0 from local number if present.

    • This can be a landline or or mobile but must be accessible to the user when resetting their password and setting up MFA.

    • Users can add the authenticator app and/or additional phone numbers during MFA self-registration.

  • SecondaryEmail: An existing organisational email address for the user.

    Note

    This is not uploaded to their Data Safe Haven user account but is needed when sending account activation messages.

  • GroupName: The name of the 🔒 SRE Security Groups that the users should be added to. Users will need to be added to the relevant security group before they can access an SRE. You can also change this manually later on (see 👩 👨 Modifying user SRE access).

    Tip

    If the user needs to be added to multiple groups, separate them with a pipe-character ( | ).

🔄 Create and synchronise users

Upload the user details CSV file to a sensible location on the SHM domain controller (recommended: C:\Installation). This can be done by copying and pasting the file from your deployment device to the SHM DC.

• Log into the SHM primary domain controller (DC1-SHM-<SHM ID>) VM using the login credentials stored in Azure Key Vault

• Open a Powershell command window with elevated privileges

• Run C:\Installation\CreateUsers.ps1 <path_to_user_details_file>

• This script will add the users and trigger synchronisation with Azure Active Directory

• It will still take around 5 minutes for the changes to propagate

Error

If you get the message New-ADUser : The specified account already exists you should first check to see whether that user actually does already exist! Once you’re certain that you’re adding a new user, make sure that the following fields are unique across all users in the Active Directory.

• SamAccountName

  • Specified explicitly in the CSV file.

  • If this is already in use, consider something like firstname.middle.initials.lastname

• DistinguishedName

  • Formed of CN=<DisplayName>,<OUPath> by Active Directory on user creation.

  • If this is in use, consider changing DisplayName from <GivenName> <Surname> to <GivenName> <middle initials> <Surname> .

Danger

• These domain administrator credentials have complete control over creating and deleting users as well as assigning them to groups

• Do not use them except where specified and never write them down!

• Be particularly careful never to use them to log in to any user-accessible VMs (such as the SRDs)

👩 👨 Modifying user SRE access

Users may have been added to one or more 🔒 SRE Security Groups through setting the GroupName field in the user_details_template.csv (see 📜 Generate user details CSV file). Security Group assignments can also be manually modified via the following:

• Log into the SHM primary domain controller (DC1-SHM-<SHM ID>) VM using the login credentials stored in Azure Key Vault

• In Server Manager click Tools > Active Directory Users and Computers

• Click on Safe Haven Security Groups

• Find the group that the user needs to be added to (see 🔒 SRE Security Groups)

• Right click on the group and click Properties

• Click the Members tab

• To add a user click Add...

  • Enter a part of the user’s name and click Check Names

  • Select the correct user and click OK, then click OK again until the window closes

• To remove a user click on the username of the person and then Remove

  • Click Yes if you’re sure this user should no longer have access to this SRE, then click OK again until the window closes

• Open a Powershell command window with elevated privileges

• Run C:\Installation\Run_ADSync.ps1

📱 Edit user details

The DC1 is the source of truth for user details. If these details need to be changed, they should be changed in the DC1 and then synchronised to Azure AD.

• Log into the SHM primary domain controller (DC1-SHM-<SHM ID>) VM using the login credentials stored in Azure Key Vault

• In Server Manager click Tools > Active Directory Users and Computers

• Click on Safe Haven Research Users

• Find the person, right click on them and select Properties

• To edit a phone number, select the Telephones tab and edit the Mobile number

  • Click OK to save the new number

  • Open a Powershell command window with elevated privileges

  • Run C:\Installation\Run_ADSync.ps1

• To edit a user’s email or their username (or first name or last name) you’ll need to delete the user entirely and recreate them, meaning they’ll have to set up their accounts (including MFA) again

  • Find the person, right click on them and click Delete

  • Click OK

  • Open a Powershell command window with elevated privileges

  • Run C:\Installation\Run_ADSync.ps1

  • Create a new csv (or edit an existing) one with the correct user details (see 🔰 Create new users)

  • Run C:\Installation\CreateUsers.ps1 <path_to_user_details_file>

  • Run C:\Installation\Run_ADSync.ps1

• You can check the changes you made were successful by logging into the Azure Portal as the AAD admin

  • Open Azure Active Directory

  • Click on Users under Manage and search for the user

  • Click on the user and then Edit properties and confirm your changes propagated to Azure AD

❌ Deleting users

• Log into the SHM primary domain controller (DC1-SHM-<SHM ID>) VM using the login credentials stored in Azure Key Vault

• In Server Manager click Tools > Active Directory Users and Computers

• Click on Safe Haven Research Users

• Find the person, right click on them and click Delete

• Open a Powershell command window with elevated privileges

• Run C:\Installation\Run_ADSync.ps1

• You can check the user is deleted by logging into the Azure Portal as the AAD admin

  • Open Azure Active Directory

  • Click on Users under Manage and search for the user

  • Confirm the user is no longer present

📲 Assign MFA licences

✋ Manually add licence to each user

• Login into the Azure Portal and connect to the correct AAD

• Open Azure Active Directory

• Select Manage > Licenses > All Products

• Click Azure Active Directory Premium P1

• Click Assign

• Click Users and groups

• Select the users you have recently created and click Select

• Click Assign to complete the process

🚗 Automatically assign licences to users

To automatically assign licences to all local Active Directory users that do not currently have a licence in Azure Active Directory.

• Ensure you have the same version of the Data Safe Haven repository as was used by your deployment team

• Open a Powershell terminal and navigate to the deployment/administration directory within the Data Safe Haven repository

• Run the ./SHM_Add_AAD_Licences.ps1 -tenantId <Tenant ID> script, where <Tenant ID> is the ID of the Azure tenant belonging to the SHM you want to add the licences to

🏃 User activation

We recommend using email to send connection details to new users.

Note

This is not a security risk since:

• we are not sending passwords in this email

• the user needs access to their previously-provided phone number in order to set their account password and MFA

A sample email might look like the following

Dear <participant name>,

Welcome to <event name>! You’ve been given access to a Data Safe Haven managed by <organisation name>. Please find a PDF version of our user guide attached. You should start by following the instructions about setting up your account and enabling multi-factor authentication (MFA).

Your username is: <username@domain> Your Safe Haven is hosted at: <URL>

The Safe Haven is only accessible from certain networks and may also involve physical location restrictions.

–details about network and location/VPN restrictions here–

👷 Common user problems

One of the most common user issues is that they are unable to log in to the environment. Here we go through the login procedure and discuss possible problems at each step

🌘 Expired webclient certificate

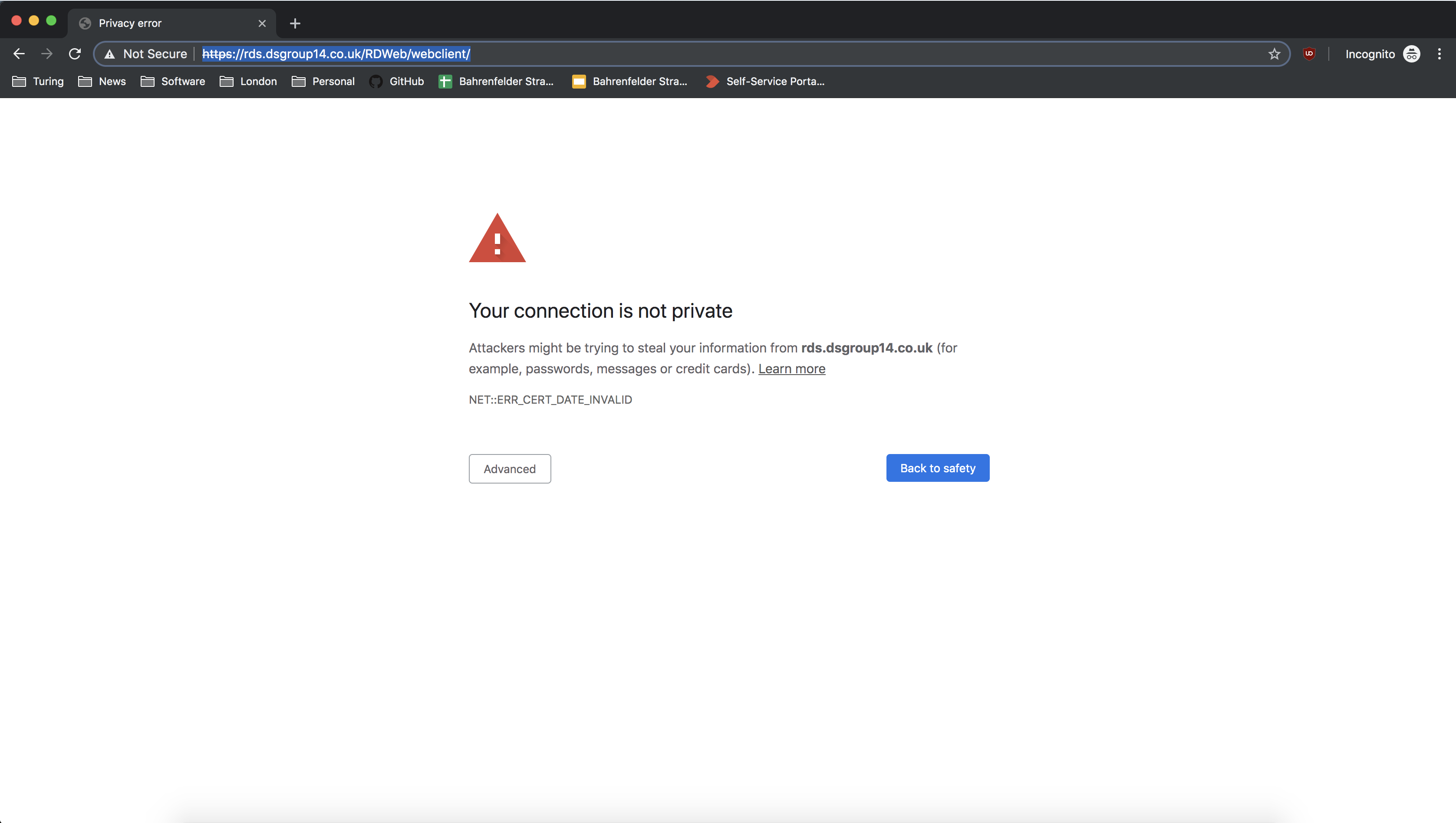

If the certificate for the SRE domain has expired, users will not be able to login.

Tip

Solution: Replace the SSL certificate with a new one

• ⏰ Renewing SRE Domain Certificates

🔴 Unable to log into remote desktop gateway

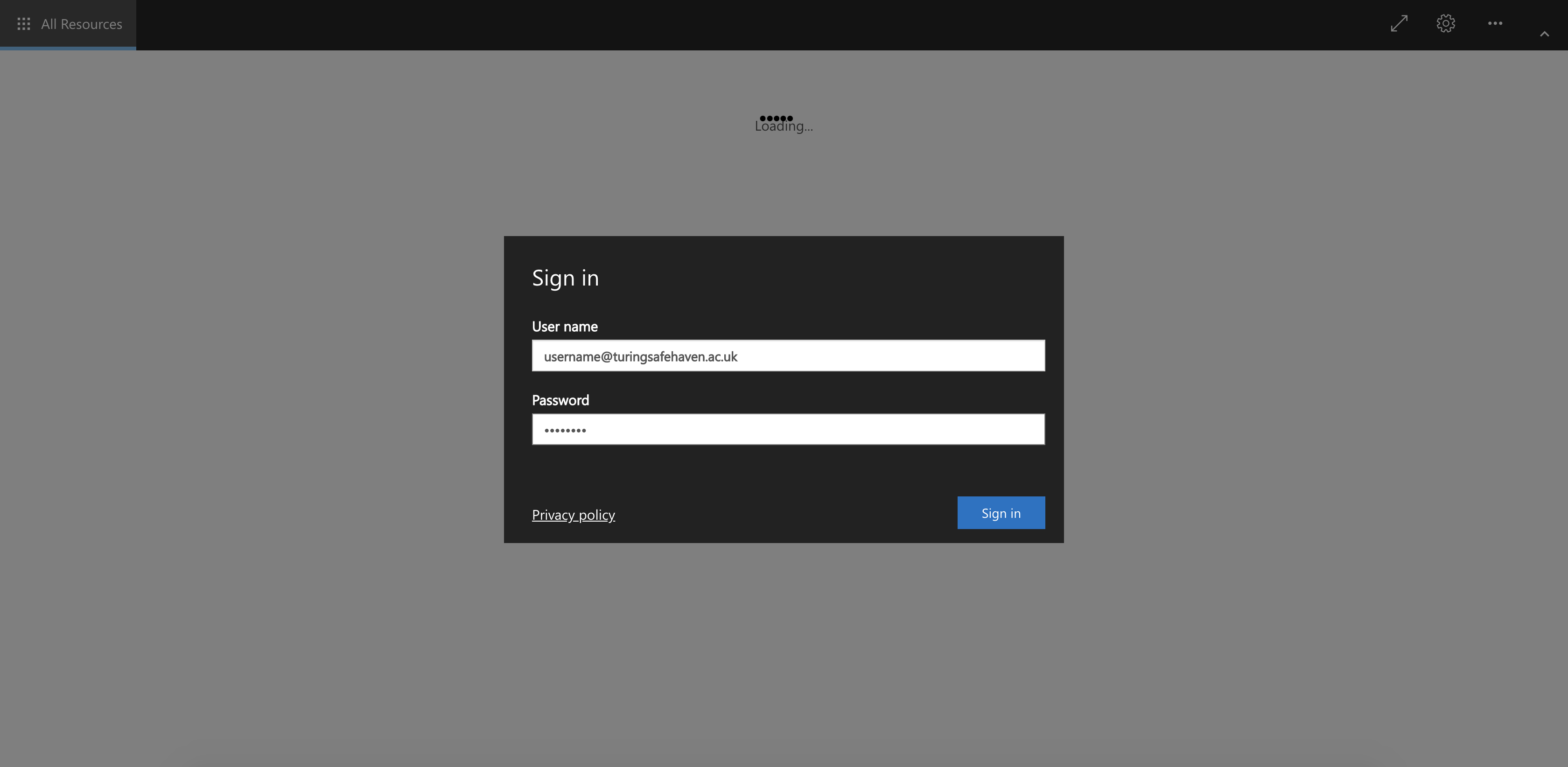

If users give the wrong username or password they will not be able to progress past the login screen.

Tip

Solution: Check user credentials, password may need to be reset.

🚋 Unable to open any remote apps

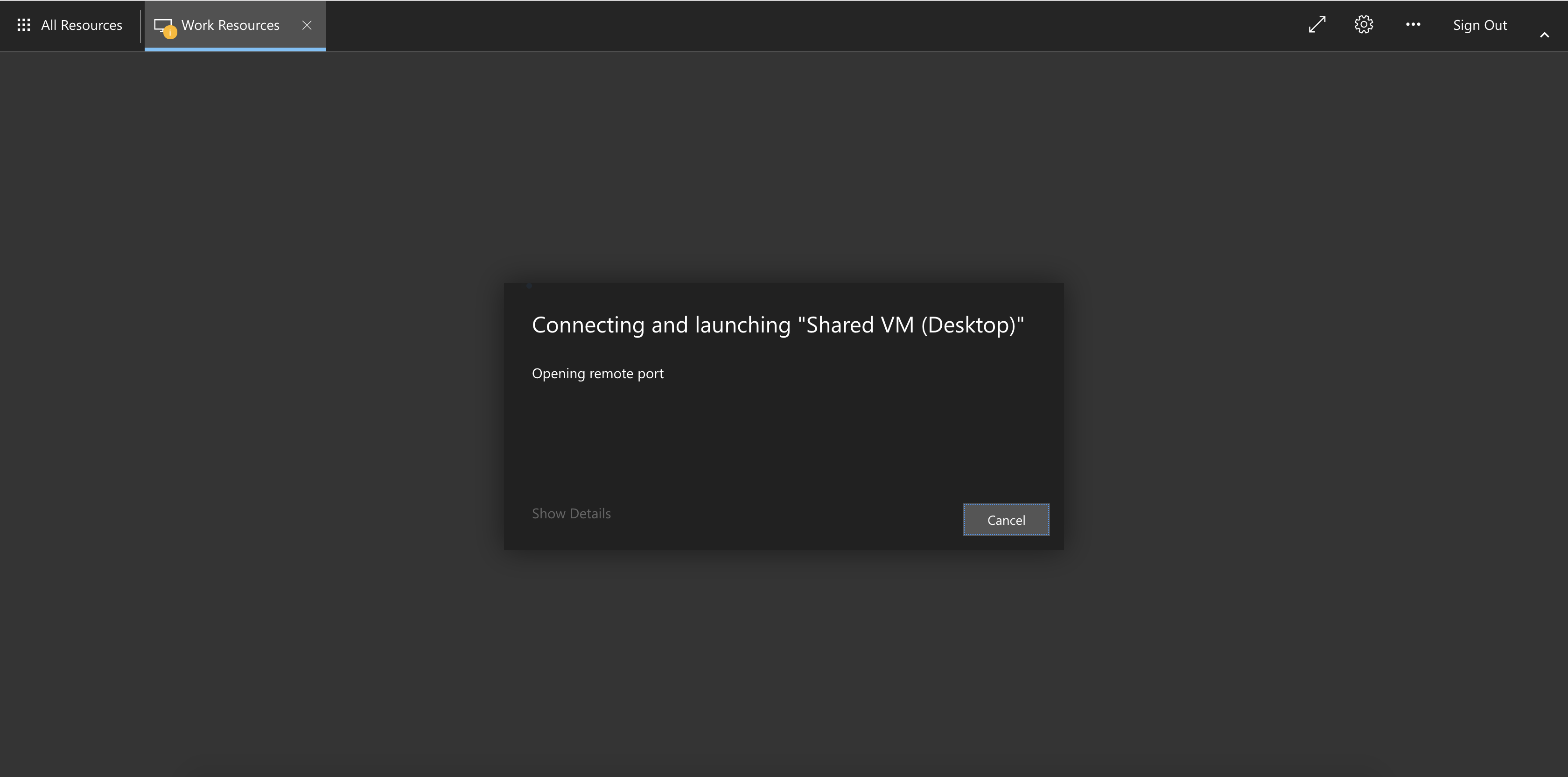

Users are stuck at the Opening remote port message and never receive the MFA prompt.

Tip

Solution: Check MFA setup

• Ensure that the user has been assigned a license in Azure Active Directory

• Check that the user has set up MFA (at https://aka.ms/mfasetup ) and is using the phone-call or app authentication method

🙈 Unable to see SRD or SSH connection options

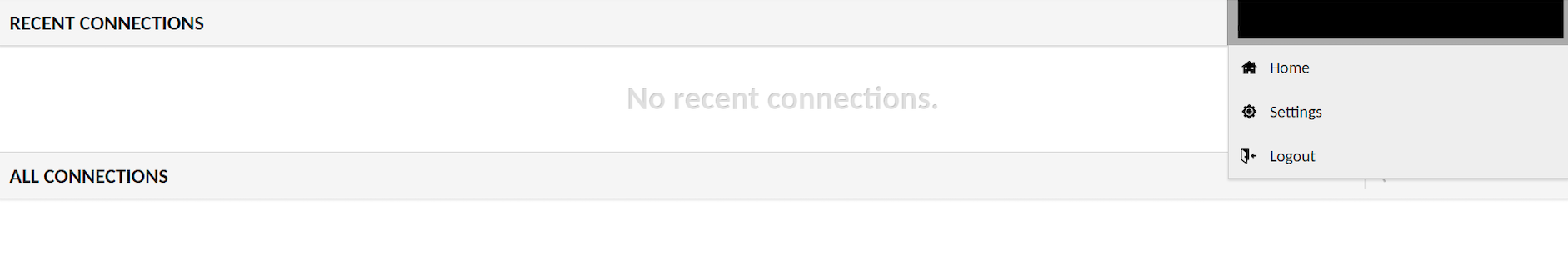

After logging in with Microsoft, users can’t see the option to log into the SRE via the SRD or SSH options.

Tip

Solution: Ensure the user is added to the correct Security Group for the SRE

• See 👩 👨 Modifying user SRE access

💔 Xorg login failure on the SRD

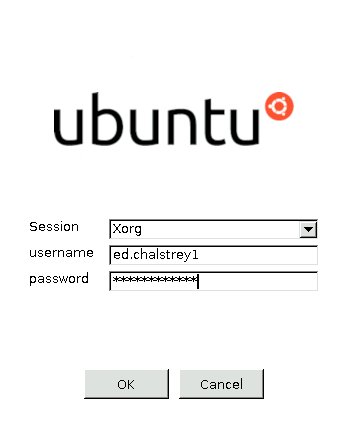

If users can get to the login screen:

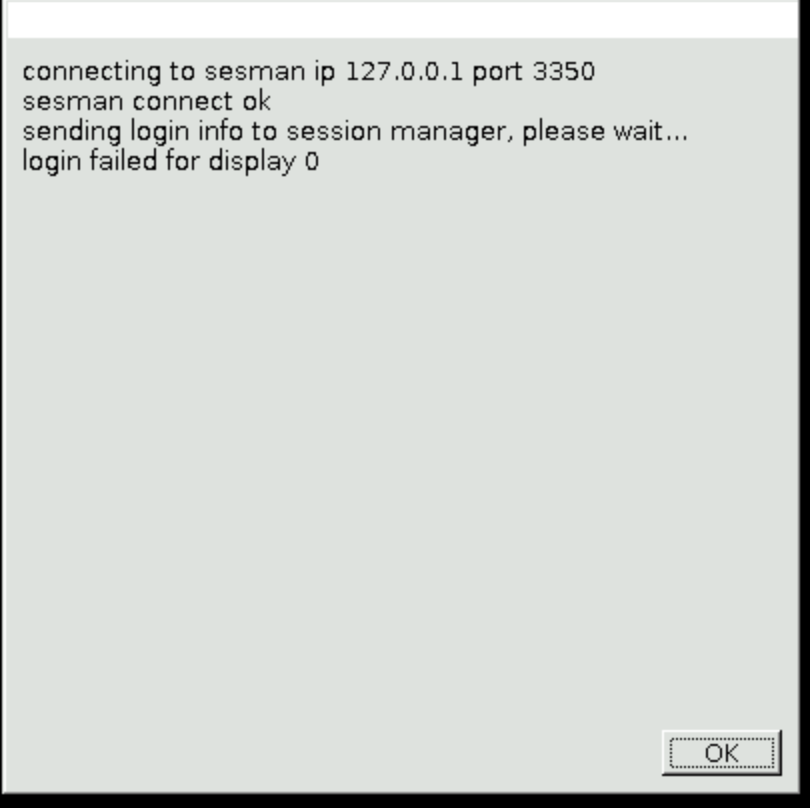

but then see this error message:

there are a couple of possible causes.

Error

Problem: the username or password was incorrectly entered

Solution: check username and password

• Confirm that the username and password have been correctly typed

• Confirm that there are no unsupported special characters in the password

• Reset the account if there is no other solution

Error

Problem: the computer is unable to communicate with the login server

Solution: run diagnostics

• This can happen for a variety of reasons (DNS problems, broken services on the SRD etc.)

• Run the script under deployment/administration/SRE_SRD_Remote_Diagnostics.ps1, providing the group and last IP octet of the problematic SRD

• This will run a series of diagnostics intended to fix some common problems including

  • LDAP configuration

  • DNS configuration

  • SSS configuration

  • File mounting configuration

🔩 Password reset failure

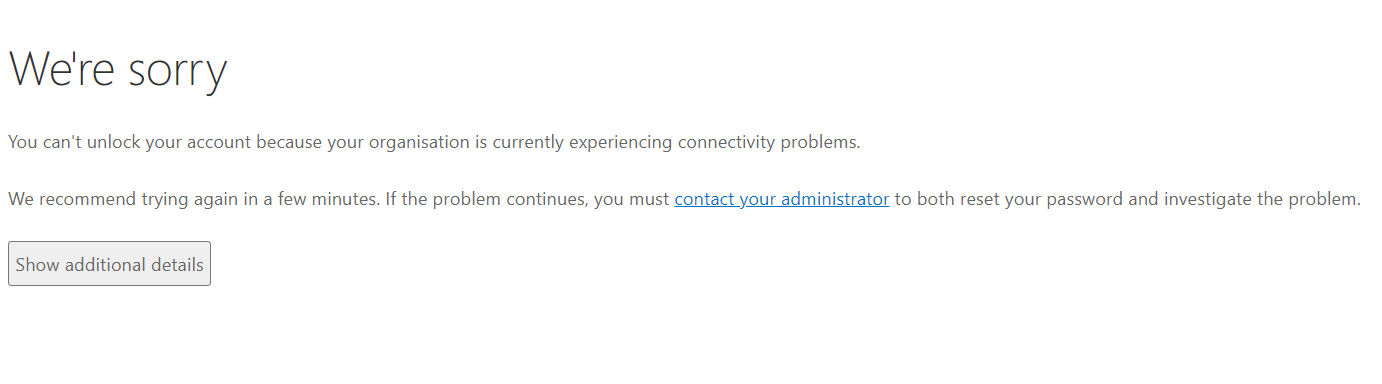

When creating an account or resetting a password, the users get the following screen:

Error

Problem: the password could not be reset

Solution: remove and re-add the password reset configuration on the DC1

• Log into the SHM primary domain controller (DC1-SHM-<SHM ID>) VM using the login credentials stored in Azure Key Vault

• Open a Powershell command window with elevated privileges

• Run $aadConnector = Get-ADSyncConnector | ? {$_.Name -match "onmicrosoft.com - AAD"}

• Run Remove-ADSyncAADPasswordResetConfiguration -Connector $aadConnector.Name

• Run Set-ADSyncAADPasswordResetConfiguration -Connector $aadConnector.Name -Enable $true

• Check the configuration is reset by running Get-ADSyncAADPasswordResetConfiguration -Connector $aadConnector.Name

• Ask the user to reset their password again

☁️ Unable to install from package mirrors

If it is not possible to install packages from the package mirrors then this may be for one of the following reasons:

Error

Problem: Mirror VNet is not correctly peered

Solution: Re-run the network configuration script.

On your deployment machine.

• Ensure you have the same version of the Data Safe Haven repository as was used by your deployment team

• Open a Powershell terminal and navigate to the deployment/secure_research_environment/setup directory within the Data Safe Haven repository

• Ensure you are logged into Azure within Powershell using the command: Connect-AzAccount

  • NB. If your account is a guest in additional Azure tenants, you may need to add the -Tenant <Tenant ID> flag, where <Tenant ID> is the ID of the Azure tenant you want to deploy into.

• Run the ./Apply_Network_Configuration.ps1 -sreId <SRE ID> script, where the SRE ID is the one specified in the config

Error

Problem: Internal mirror does not have the required package

Solution: Check package availability

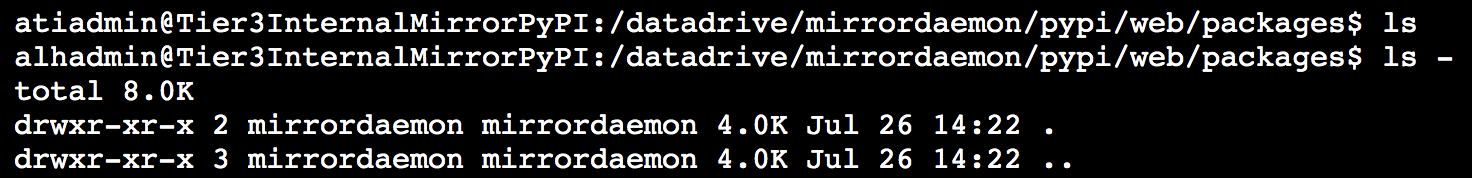

To diagnose this, log into the Internal mirror using the Serial Console through the Azure portal. Check the packages directory (i.e. /datadrive/mirrordaemon/pypi/web/packages for PyPI or /datadrive/mirrordaemon/www/cran for CRAN)

If the requested package should be available (i.e. it is on the appropriate allowlist), then you can force a mirror update by rebooting the EXTERNAL mirrors. This will trigger the following actions:

1. Synchronisation of the external mirror with the remote, internet repository (a pull update)

2. Synchronisation of the internal mirror with the external mirror (a push update)

This may take an hour or two but should solve the missing package problem.
